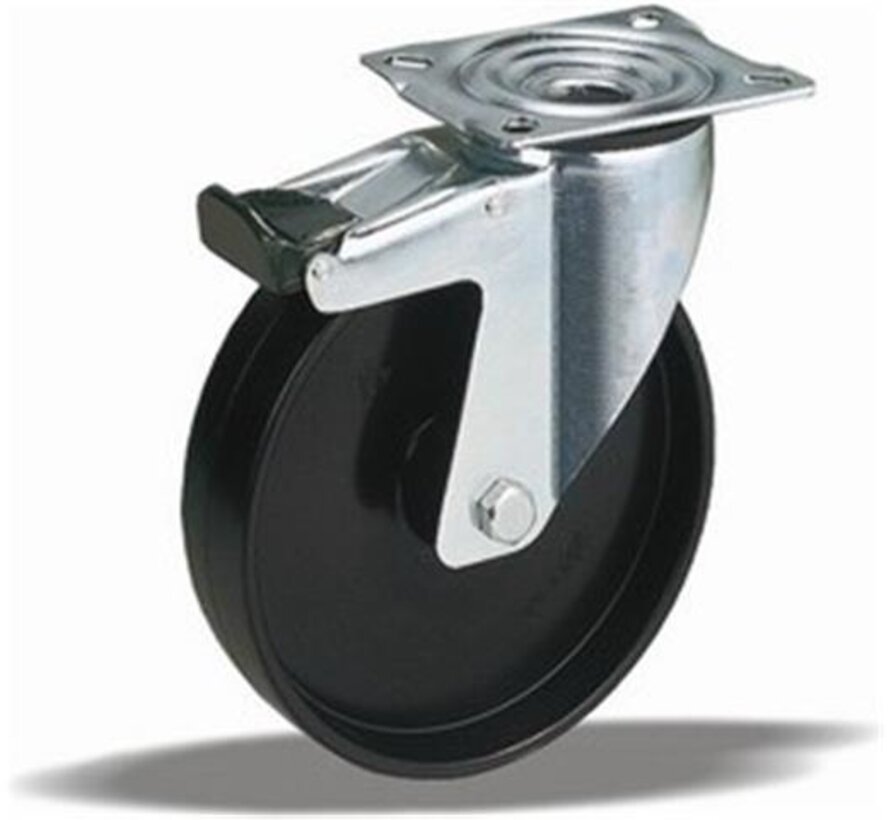

standard Swivel castor with brake + solid polyamide wheel Ø80 x W35mm for 150kg Prod ID: 40853

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

standard Swivel castor with brake with an overall height of 106 mm
Wheel diameter x width: 80 x 35 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with plain bearing and solid polyamide wheel with hardness 70±5 Shore D
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 150 kg
Static 180 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this High load easy start Swivel castor with brake:
✓ wearout
✓ effort to keep rolling
✓ to turn

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel castor with brake + solid polyamide wheel Ø80 x W35mm for 150kg Prod ID: 40853

ID 40853: Castor overall height 106 mm | 4 mounting holes with distance 80x60 mm | Wheel with plain bearing and solid polyamide wheel with hardness 70±5 Shore D | The double brake system, brakes the turning of the wheel and the swivel rotation. | High lo
