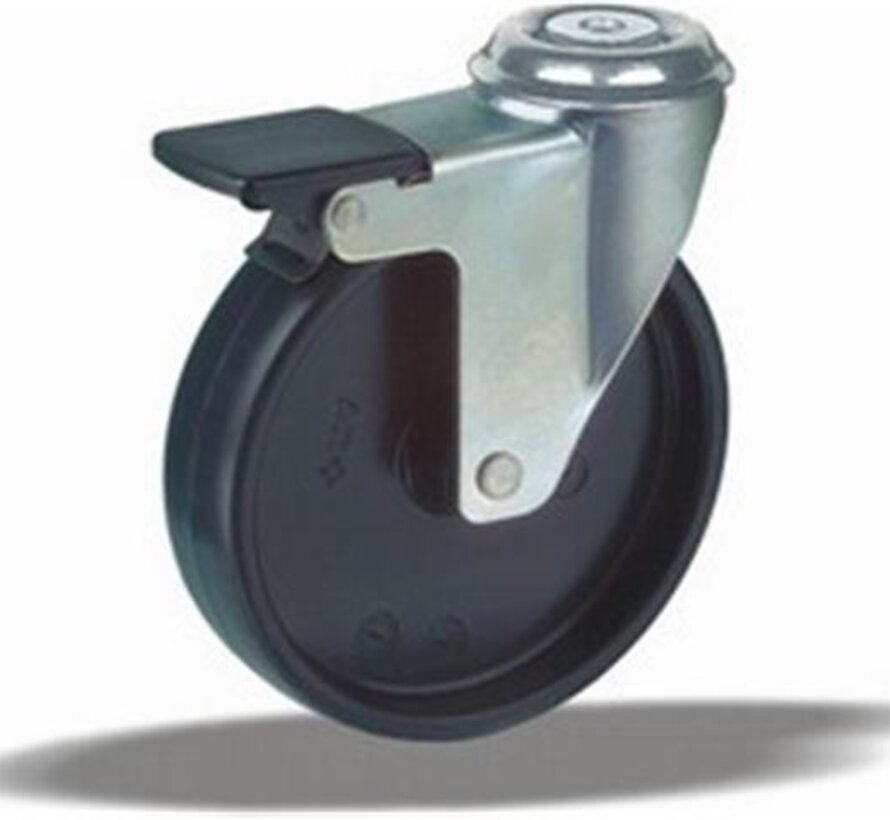

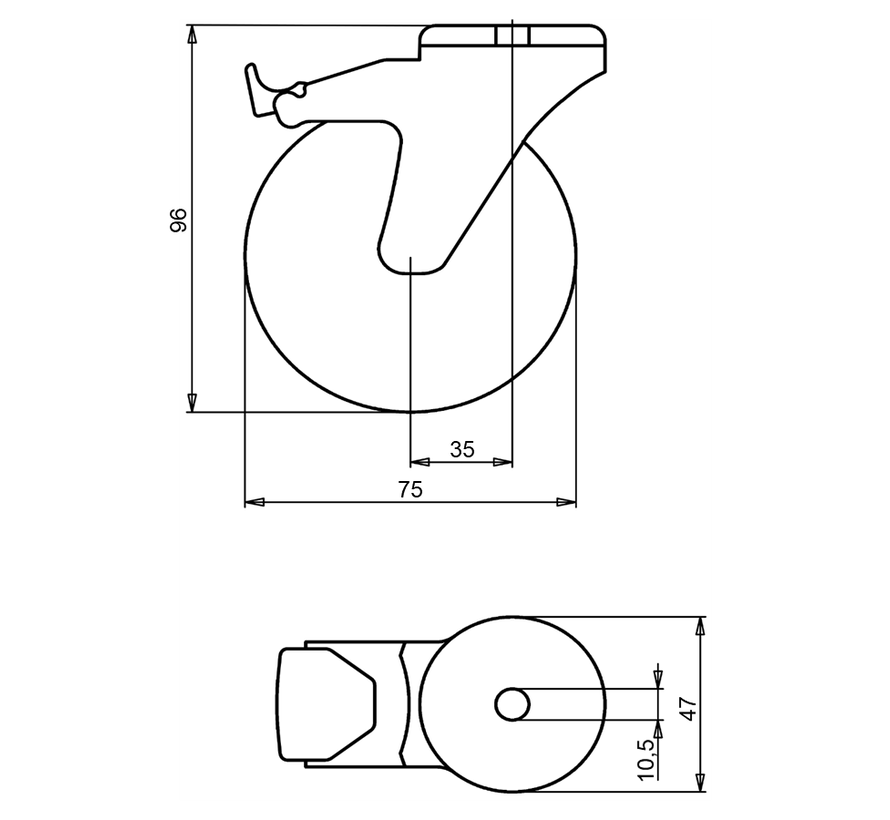

Furniture Swivel castor with brake with an overall height of 96 mm.
Wheel diameter x width: 75 x 25 mm.
Top plate with 4 mounting holes of 10,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 47 mm.
Wheel with plain bearing and solid polypropylene wheel with hardness 60±5 ° Shore D
the double brake system, brakes the turning of the wheel and the swivel rotation.
Approved and tested load capacity:
Dynamic: 75 kg
Static: 90 kg
Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: /°C
Advantages of this Swivel castor with brake:
✓ attractive design
✓ rotating on spot
furniture Swivel castor with brake + solid polypropylene wheel Ø75 x W25mm for 75kg Prod ID: 40743
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-847 B10
- SKU 40743
- EAN 3838461407437
Specifications
