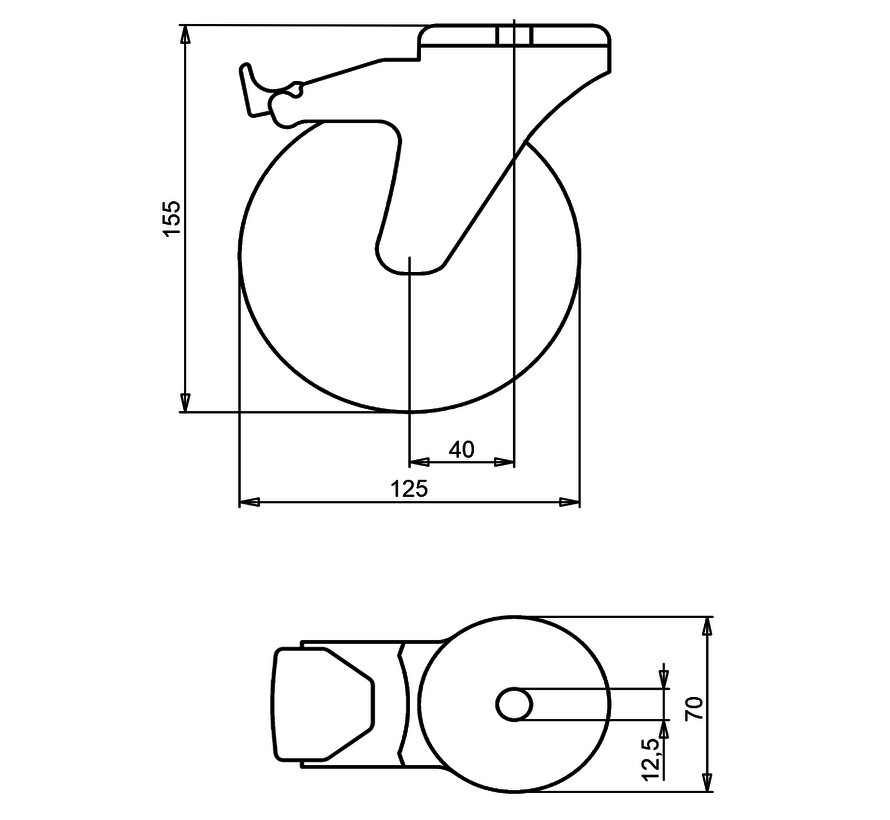

standard Swivel castor with brake with an overall height of 155 mm
Wheel diameter x width: 125 x 32 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 70 mm
Wheel with plain bearing and injection-moulded polyurethane with hardness 92 ° shore A on polyamide
the double brake system, brakes the turning of the wheel and the swivel rotation.
Approved and tested load capacity
Dynamic 200 kg
Static 250 kg
Temperature range:
Continious operation: -20 | +80°C
Short (10 min) exposure: -40 | +100°C
Advantages of this Jump floor champion Swivel castor with brake:
✓ stoney floor
✓-proof
✓ high temperature differences
standard Swivel castor with brake + injection-moulded polyurethane Ø125 x W32mm for 200kg Prod ID: 40624
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-055-25D
- SKU 40624
- EAN 3838461406249
Specifications
