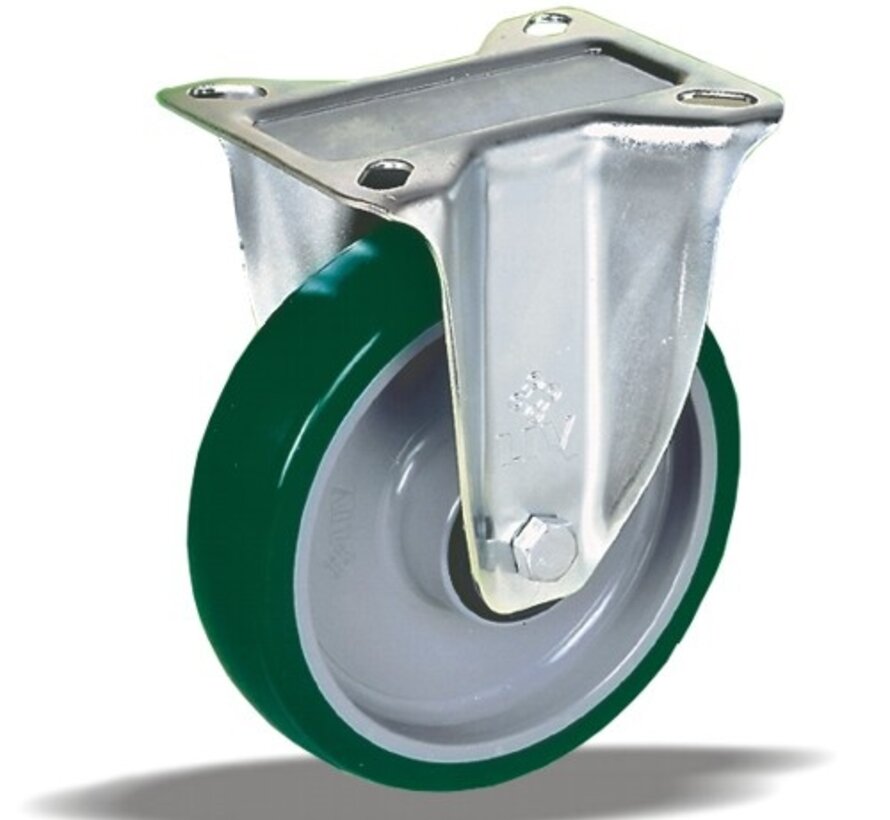

standard Fixed castor + injection-moulded polyurethane Ø125 x W32mm for 200kg Prod ID: 40465

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

standard Fixed castor with an overall height of 155 mm
Wheel diameter x width: 125 x 32 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with roller bearing and injection-moulded polyurethane with hardness 92 ° shore A on polyamide.

Approved and tested load capacity
Dynamic 200 kg
Static 250 kg

Temperature range:
Continious operation: -20 | +80°C
Short (10 min) exposure: -40 | +100°C

Advantages of this Jump floor champion Fixed castor:
✓ stoney floor
✓-proof
✓ high temperature differences

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Fixed castor + injection-moulded polyurethane Ø125 x W32mm for 200kg Prod ID: 40465

ID 40465: Castor overall height 155 mm | 4 mounting holes with distance 80x60 mm | Wheel with roller bearing and injection-moulded polyurethane with hardness 92 ° shore A | Jump floor champion, on stoney floor, cuts-proof, for high temperature differenc

Quantity

You need Innovative & durable wheel solutions? contact us Tooltip The result of our quality is maximum performance!
Ask us for CAD/STEP/Iges Models
Fastest delivery of high quantities of castors possible
Press forming steel OEM parts is our expetise
