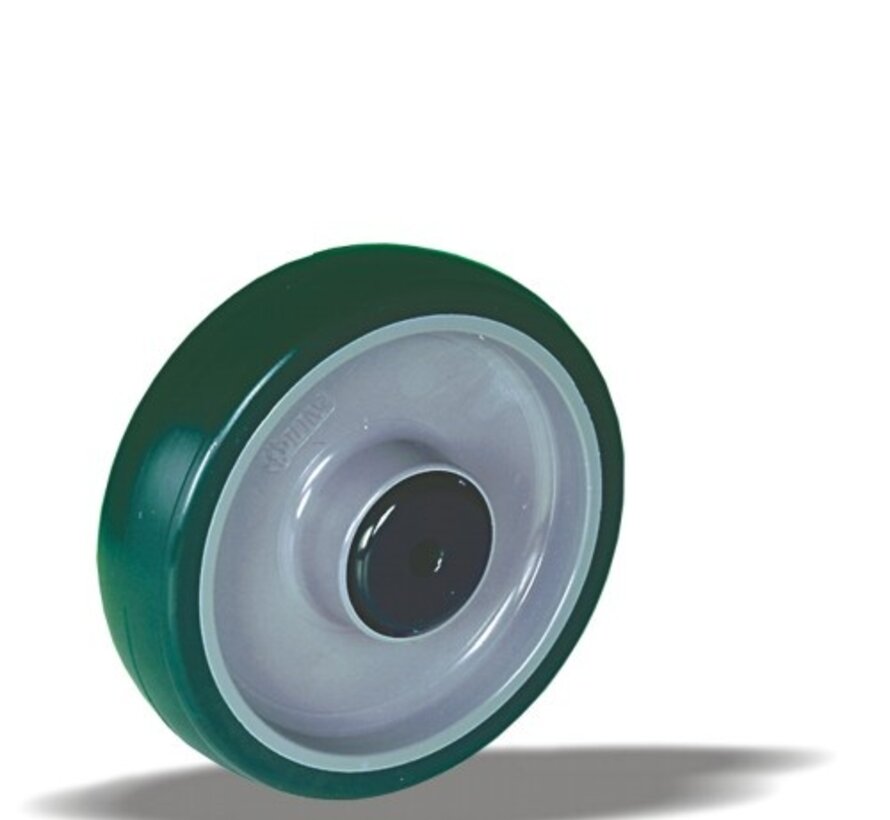

standard wheel + injection-moulded polyurethane Ø125 x W32mm for 200kg Prod ID: 40425

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

standard Wheel with roller bearing and injection-moulded polyurethane with hardness 92 ° shore A on polyamide
Wheel diameter x width: 125 x 32 mm
Axle hole: 8,5 mm
Hub length: 44 mm

Approved and tested load capacity
Dynamic 200 kg
Static 250 kg

Temperature range:
Continious operation: -25 | +55°C
Short (10 min) exposure: -30 | +55°C

Advantages of this Jump floor champion wheel:
✓ stoney floor
✓-proof
✓ high temperature differences

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard wheel + injection-moulded polyurethane Ø125 x W32mm for 200kg Prod ID: 40425

ID 40425:standard Wheel with roller bearing and injection-moulded polyurethane with hardness 92 ° shore A on polyamide | Axle hole: 8,5 mm | Hub length: 44 mm | Jump floor champion, on stoney floor, cuts-proof, for high temperature differences

Quantity

You need Innovative & durable wheel solutions? contact us Tooltip The result of our quality is maximum performance!
Ask us for CAD/STEP/Iges Models
Fastest delivery of high quantities of castors possible
Press forming steel OEM parts is our expetise
