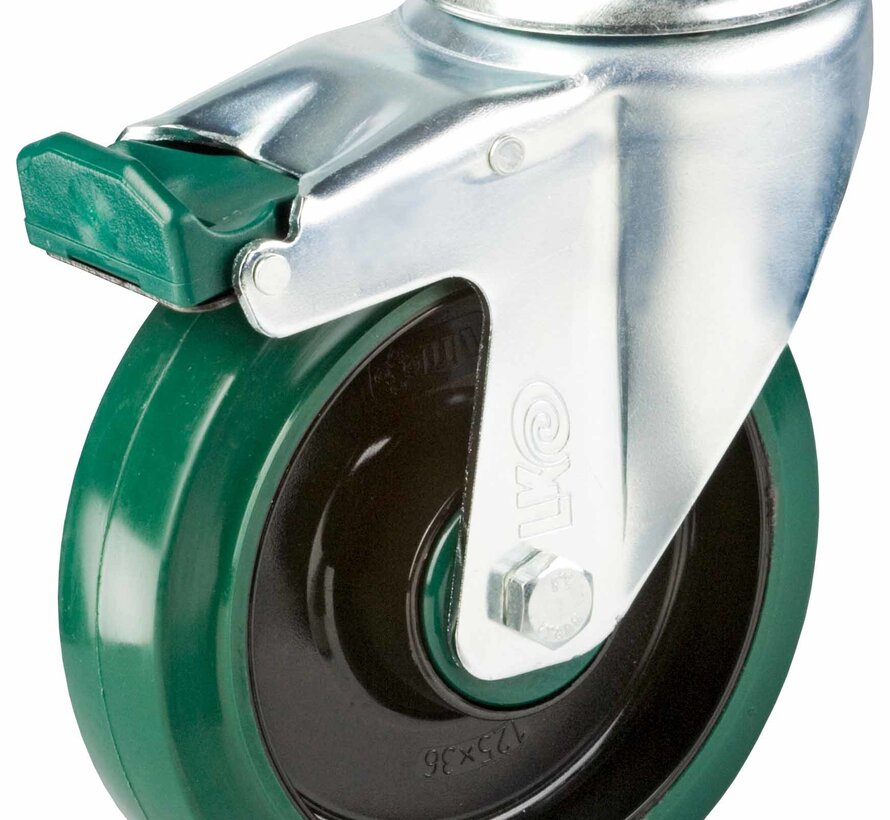

standard Swivel castor with brake + elastic rubber tyre Ø100 x W35mm for 150kg Prod ID: 40244

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

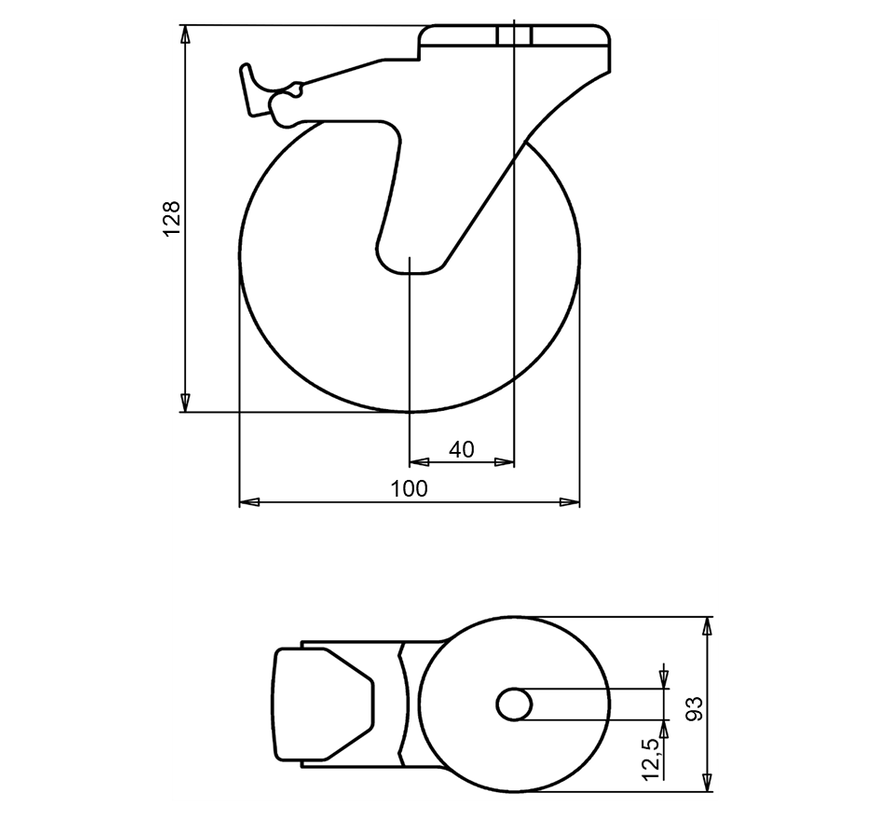

standard Swivel castor with brake with an overall height of 128 mm
Wheel diameter x width: 100 x 35 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 70 mm
Wheel with plain bearing and elastic rubber tyre with hardness 70 ° shore A on polyamide
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 150 kg
Static 180 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Soft floor wheel Swivel castor with brake:
✓ force to start
✓ ride
✓ to surface when stationed

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel castor with brake + elastic rubber tyre Ø100 x W35mm for 150kg Prod ID: 40244

ID 40244: Castor overall height 128 mm | 4 mounting holes with distance #$% mm | Wheel with plain bearing and elastic rubber tyre with hardness 70 ° shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Soft floor

Quantity

You need Innovative & durable wheel solutions? contact us Tooltip The result of our quality is maximum performance!
Ask us for CAD/STEP/Iges Models
Fastest delivery of high quantities of castors possible
Press forming steel OEM parts is our expetise
