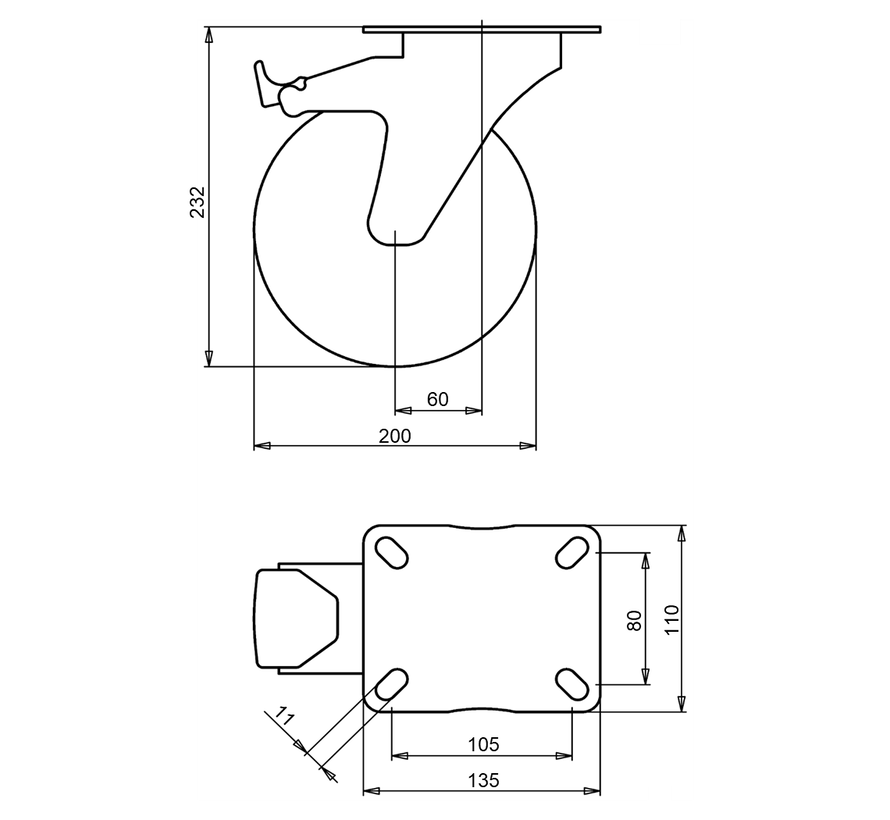

standard Swivel castor with brake with an overall height of 232 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with plain bearing and elastic rubber tyre with hardness 70 ° shore A on polyamide
the double brake system, brakes the turning of the wheel and the swivel rotation.
Approved and tested load capacity
Dynamic 300 kg
Static 370 kg
Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C
Advantages of this Soft floor wheel Swivel castor with brake:
✓ force to start
✓ ride
✓ to surface when stationed
standard Swivel castor with brake + elastic rubber tyre Ø200 x W50mm for 300kg Prod ID: 39984
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-043-40D
- SKU 39984
- EAN 3838461399848
Specifications
