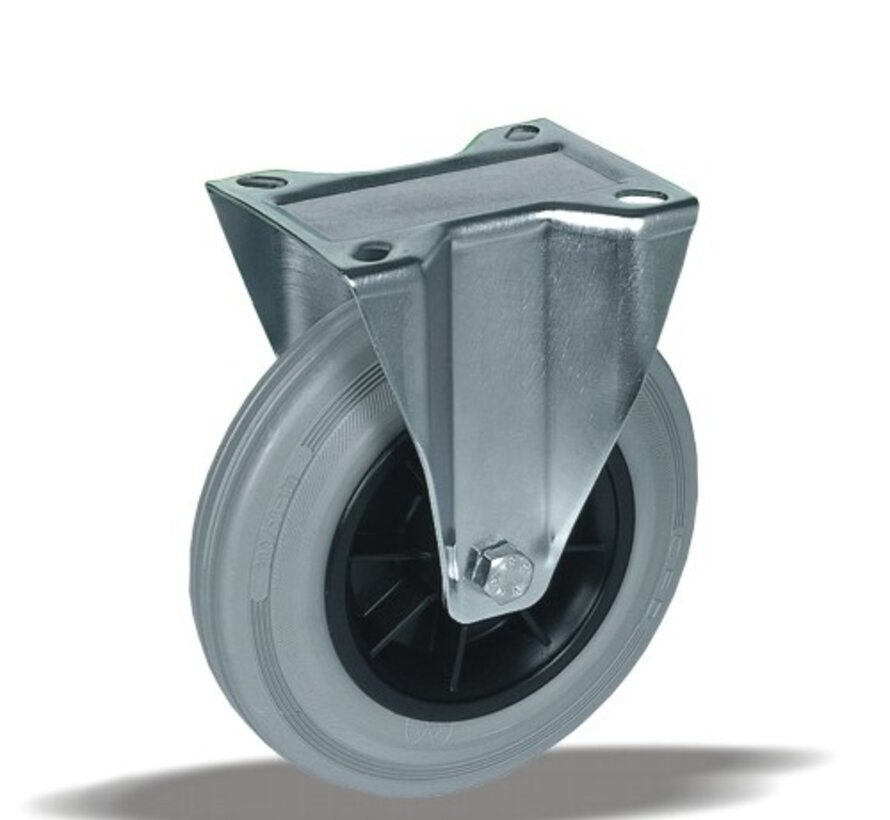

standard Fixed castor + grey rubber tyre Ø125 x W37mm for 130kg Prod ID: 39643

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

standard Fixed castor with an overall height of 155 mm
Wheel diameter x width: 125 x 37 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with plain bearing and grey rubber tyre with hardness 83 ° Shore A on polypropylene.

Approved and tested load capacity
Dynamic 130 kg
Static 160 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Elegant trip Fixed castor:
✓ rubber is non-marking and leaves no marks on the floor
✓ reduces the transmission of both vibration and noise
✓ and outdoor use

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Fixed castor + grey rubber tyre Ø125 x W37mm for 130kg Prod ID: 39643

ID 39643: Castor overall height 155 mm | 4 mounting holes with distance 80x60 mm | Wheel with plain bearing and grey rubber tyre with hardness 83 ° Shore A | Elegant trip, Grey rubber is non-marking and leaves no marks on the floor, rubber reduces the tra
