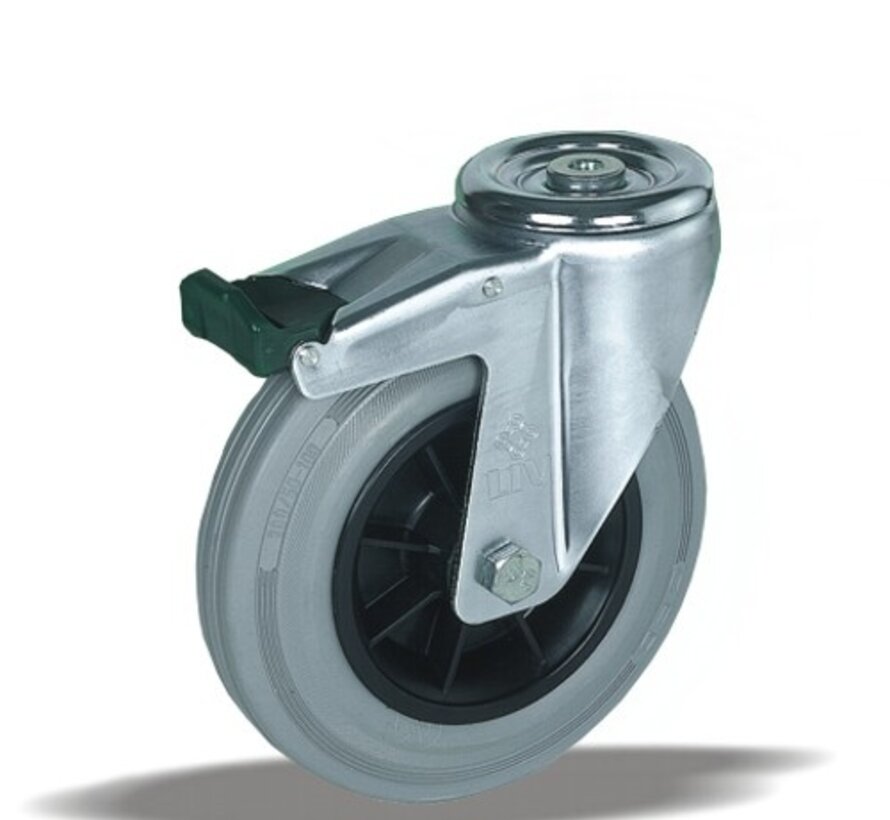

| Type | Swivel castor with total brake |
|---|---|
| Wheel diameter | 150 mm |
| Wheel width | 40 mm |
| Tread | grey rubber tread, 83 Shore A |
| Tread colour | grey |
| Wheel centre | polypropylene |
| Bearing | plain bearing |
| Load capacity, dynamic | 170 kg |
| Load capacity, static | 210 kg |
| Fitting | single bolt hole |
| Hole diameter | 12.5 mm |
| Overall height | 180 mm |
| Offset | 50 mm |
| Brake | total brake (locks wheel and swivel) |
| Weight | 1.5 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC). Tested to EN 12532.
Properties and use
The grey rubber does not leave marks on the floor. The tyre damps vibration and noise, and the wheel works indoors and outdoors. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
