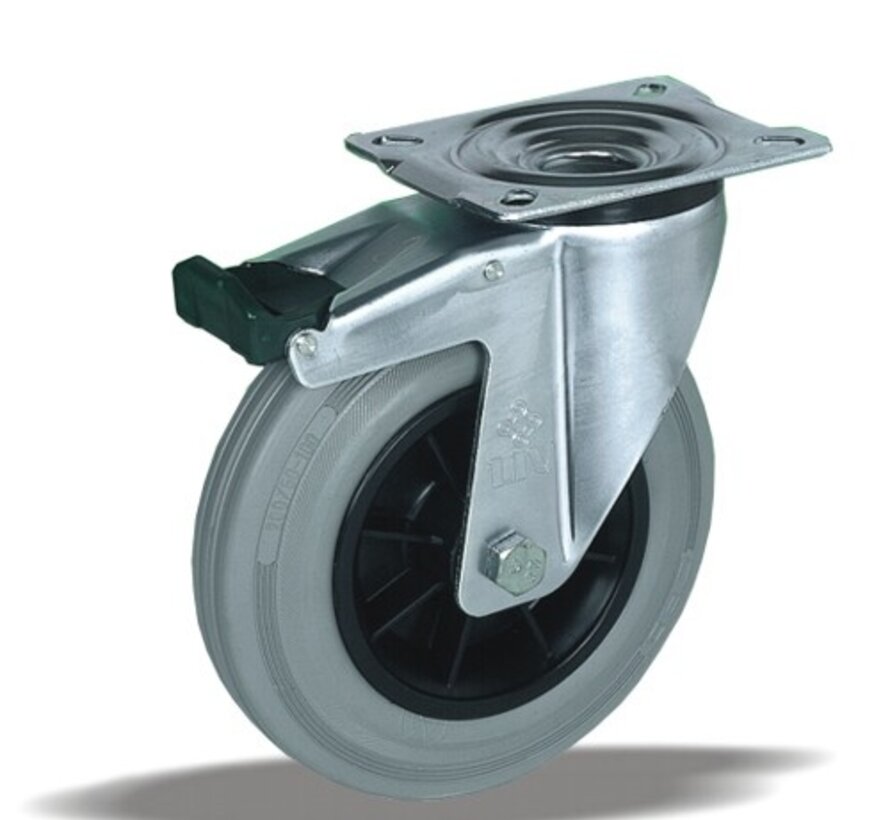

Swivel castor with total lock 100 mm, grey rubber, roller bearing, plate 105x85 mm, 80 kg, Art. 2-929 ISO

Swivel castor with total lock with a 100 mm wheel, grey rubber tread, on roller bearing. It carries 80 kg dynamic and 100 kg static, mounted on a 105x85 mm top plate with hole distance 80x60 mm. The total lock brakes the rotation of the wheel and the swivel head.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

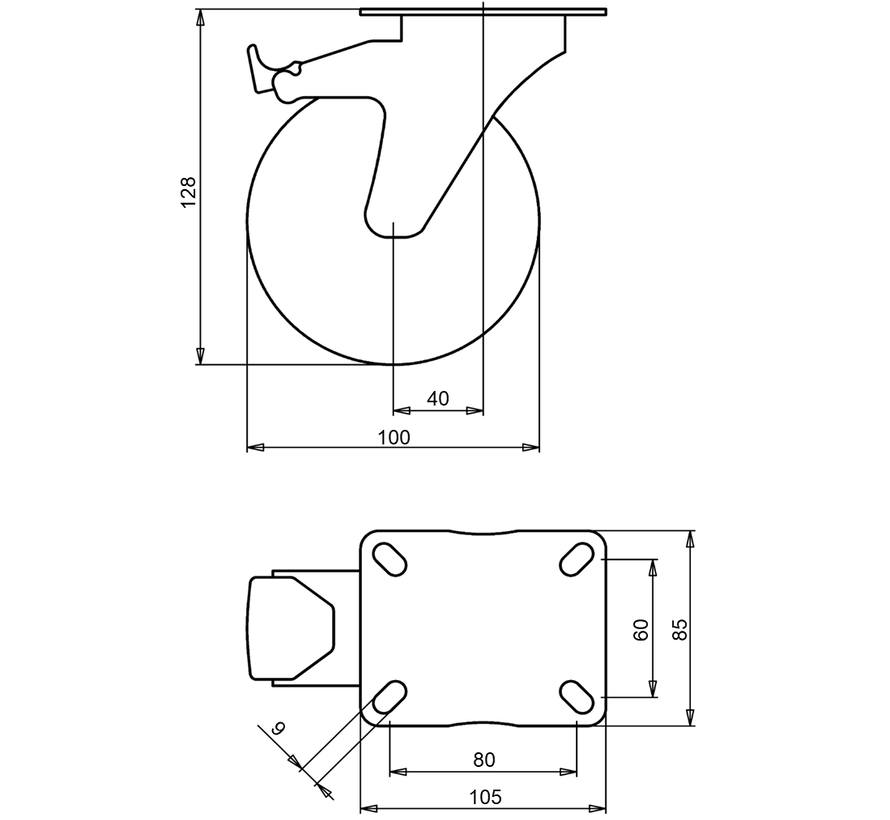

TypeSwivel castor with total lock
Wheel diameter100 mm
Wheel width32 mm
Treadgrey rubber tread, 83 Shore A
Tread colourgrey
Wheel centrepolypropylene
Bearingroller bearing
Load capacity, dynamic80 kg
Load capacity, static100 kg
Top plate105x85 mm
Hole distance80x60 mm
Fixing hole diameter9 mm
Overall height128 mm
Offset40 mm
Braketotal lock (locks wheel and swivel)
Weight0.95 kg
Temperature, continuous-20 to +70 °C
Temperature, short exposure (max. 10 min)-30 to +80 °C

Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC). Tested to EN 12532.

Properties and use

The grey rubber does not leave marks on the floor. The tyre damps vibration and noise, and the wheel works indoors and outdoors. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
