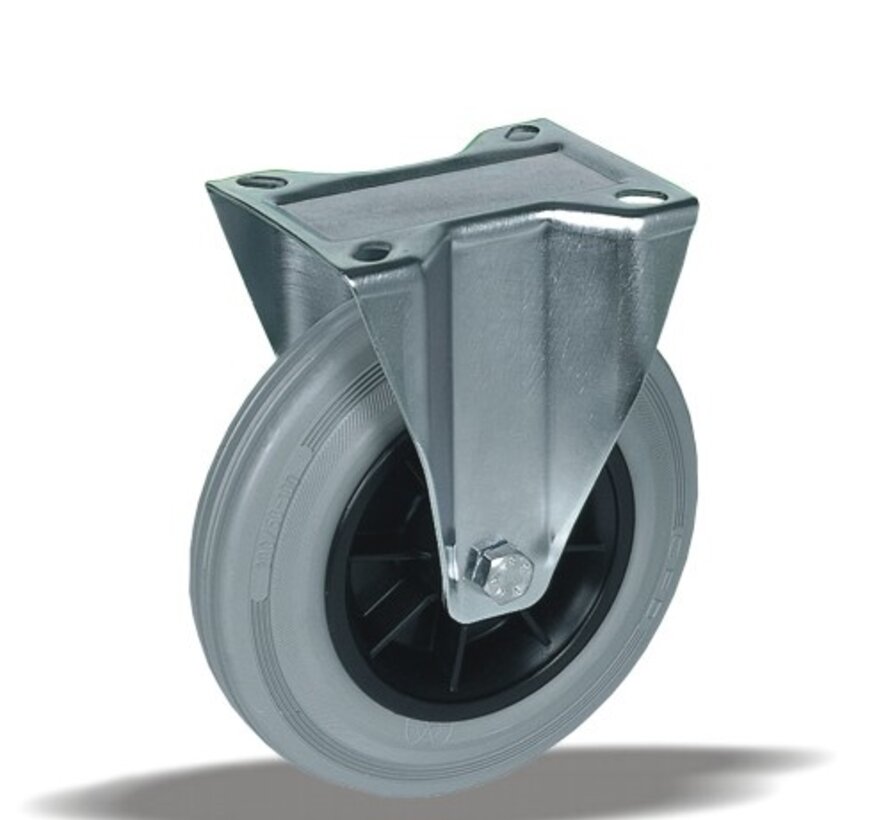

Fixed castor 160 mm, grey rubber, roller bearing, plate 135x110 mm, 180 kg, Art. 2-955 ISO
Fixed castor, 160 mm wheel diameter, grey rubber tread, running on roller bearing. Rated load is 180 kg dynamic, 220 kg static, mounted on a 135x110 mm top plate with hole distance 105x80 mm.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Fixed castor |
|---|---|
| Wheel diameter | 160 mm |
| Wheel width | 40 mm |
| Tread | grey rubber tread, 83 Shore A |
| Tread colour | grey |
| Wheel centre | polypropylene |
| Bearing | roller bearing |
| Load capacity, dynamic | 180 kg |
| Load capacity, static | 220 kg |
| Top plate | 135x110 mm |
| Hole distance | 105x80 mm |
| Fixing hole diameter | 11 mm |
| Overall height | 190 mm |
| Weight | 1.65 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC). Tested to EN 12532.
Properties and use
The grey rubber does not leave marks on the floor. The tyre damps vibration and noise, and the wheel works indoors and outdoors. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-955 ISO |
|---|---|
| SKU | 38584 |
| EAN | 3838461385841 |
