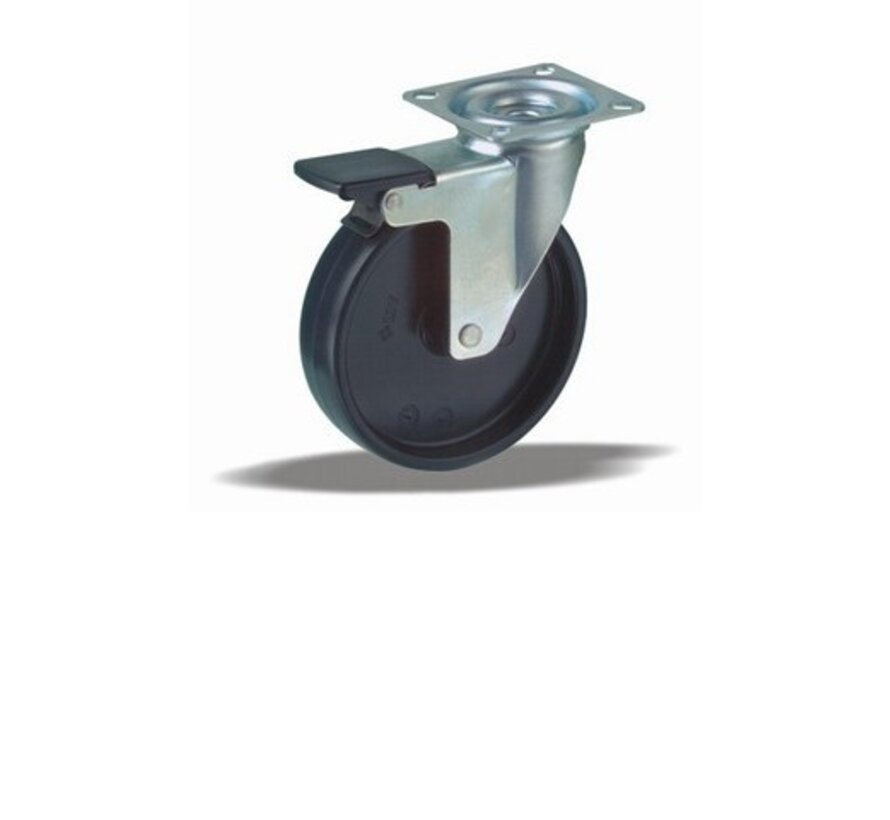

furniture Swivel castor with brake + solid polypropylene wheel Ø75 x W25mm for 75kg Prod ID: 35113

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

Furniture Swivel castor with brake with an overall height of 96 mm.
Wheel diameter x width: 75 x 25 mm.
Top plate with 4 mounting holes of 6,5 mm, mounting hole distance 46 x 46 mm and top plate outer dimensions: 60 x 60 mm.
Wheel with plain bearing and solid polypropylene wheel with hardness 60±5 ° Shore D
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity:
Dynamic: 75 kg
Static: 90 kg

Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: /°C

Advantages of Swivel castor with brake:
✓ attractive design
✓ rotating on spot

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS furniture Swivel castor with brake + solid polypropylene wheel Ø75 x W25mm for 75kg Prod ID: 35113

ID 35113: Castor overall height 96 mm | 4 mounting holes with distance 46x46 mm | Wheel with plain bearing and solid polypropylene wheel with hardness 60±5 ° Shore D | The double brake system, brakes the turning of the wheel and the swivel rotation. | Es
