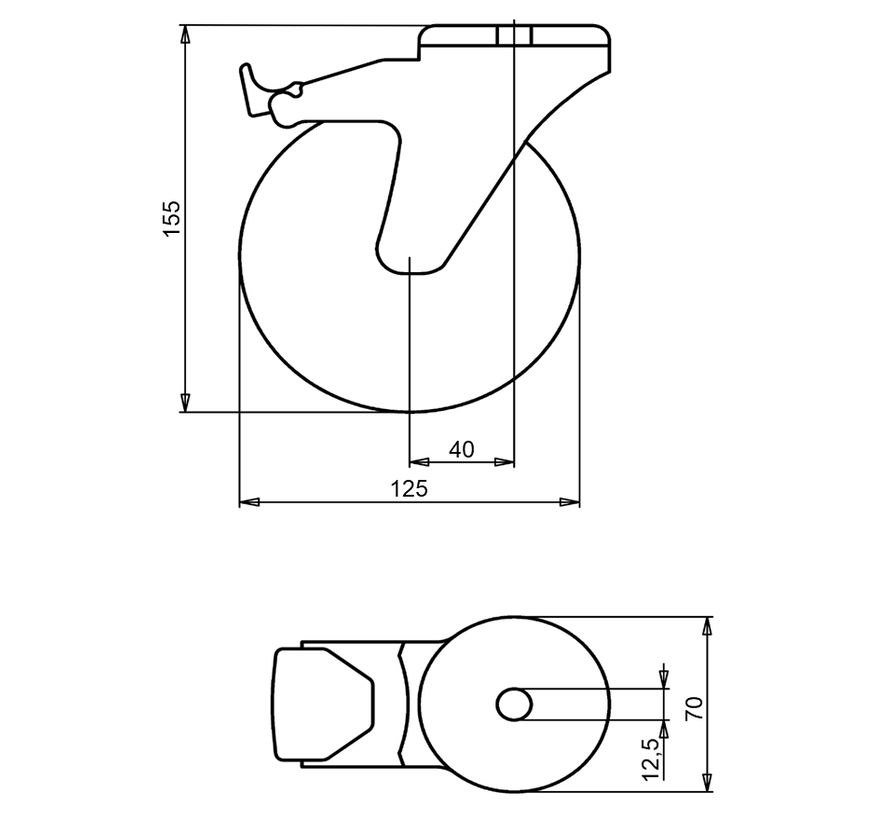

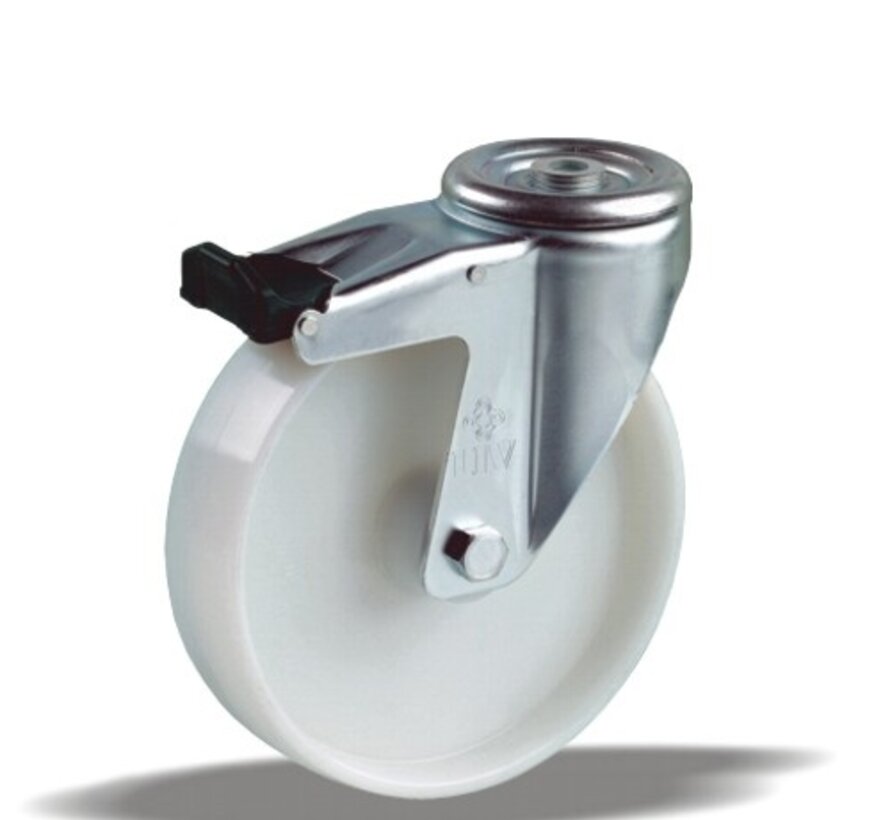

| Type | Swivel castor with total brake |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 38 mm |
| Tread | solid polyamide wheel, 70±5 Shore D |
| Wheel centre | polyamide |
| Bearing | plain bearing |
| Load capacity, dynamic | 250 kg |
| Load capacity, static | 310 kg |
| Fitting | single bolt hole |
| Hole diameter | 12.5 mm |
| Overall height | 155 mm |
| Offset | 40 mm |
| Brake | total brake (locks wheel and swivel) |
| Weight | 0.66 kg |
| Temperature, continuous | -25 to +80 °C |
| Temperature, short exposure (max. 10 min) | -30 to +110 °C |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Polyamide resists many chemicals, carries high loads and takes shock impact. It tolerates large temperature swings. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
