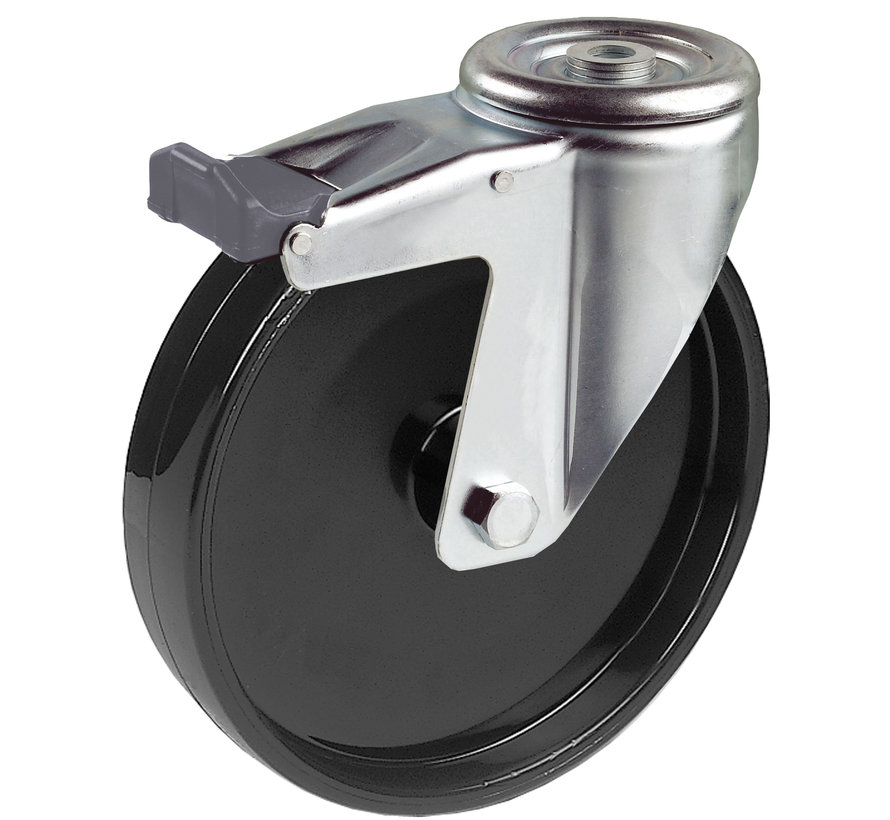

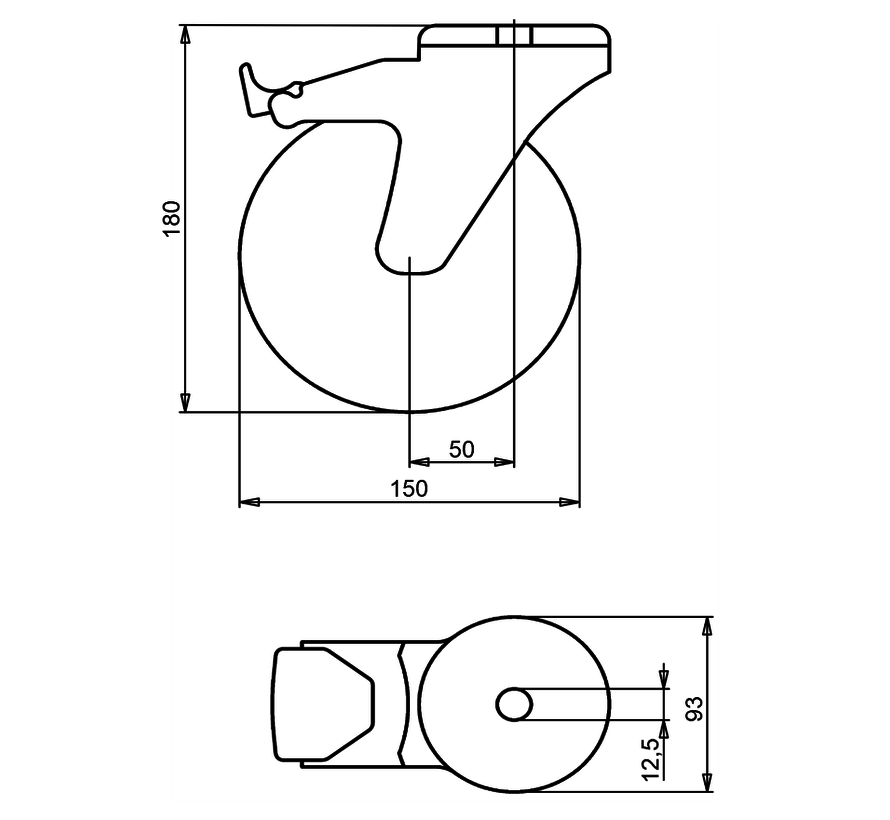

standard Swivel castor with brake with an overall height of 180 mm
Wheel diameter x width: 150 x 46 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 93 mm
Wheel with plain bearing and solid polyamide wheel with hardness 70±5 Shore D
the double brake system, brakes the turning of the wheel and the swivel rotation.
Approved and tested load capacity
Dynamic 300 kg
Static 370 kg
Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C
Advantages of this Glide through the hall Swivel castor with brake:
✓ chemical resistance
✓ load capacity and shock impact resistant
✓ high temperature shifts
standard Swivel castor with brake + solid polyamide wheel Ø150 x W46mm for 300kg Prod ID: 34684
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-796 L12
- SKU 34684
- EAN 3838461346842
Specifications
