standard Swivel transport castor with brake + black rubber tyre Ø100 x W32mm for 80kg Prod ID: 34205

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

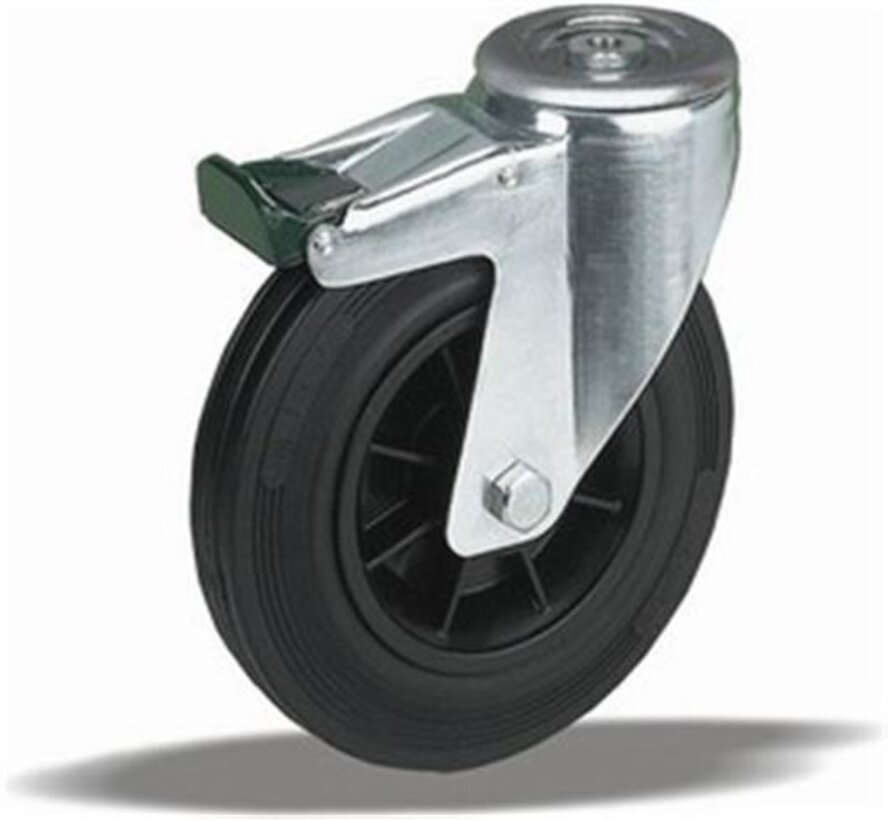

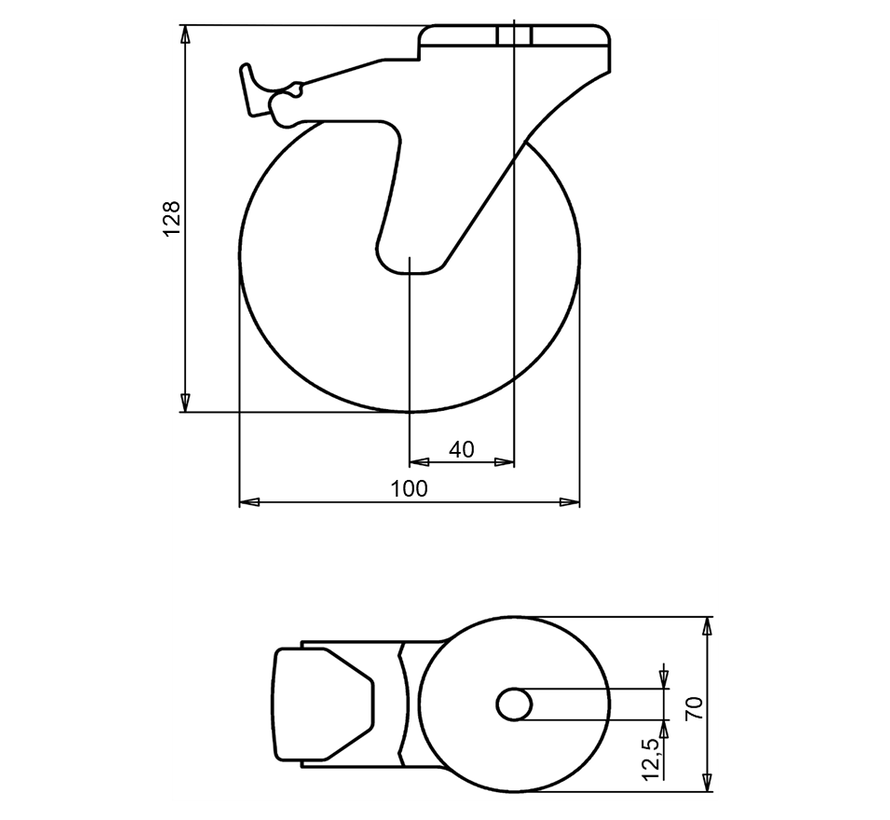

standard Swivel transport castor with brake with an overall height of 128 mm
Wheel diameter x width: 100 x 32 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 70 mm
Wheel with plain bearing and black rubber tyre with hardness 80 ° Shore A on polypropylene
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 80 kg
Static 100 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Smooth drive wheel Swivel transport castor with brake:
✓ wet floor
✓ reduces the transmission of both vibration and noise
✓ with low obstacles

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel transport castor with brake + black rubber tyre Ø100 x W32mm for 80kg Prod ID: 34205

ID 34205: Castor overall height 128 mm | 4 mounting holes with distance #$% mm | Wheel with plain bearing and black rubber tyre with hardness 80 ° Shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Smooth drive w
