Swivel transport castor 100 mm, black rubber, plain bearing, bolt hole 12.5 mm, 80 kg, product code 34135

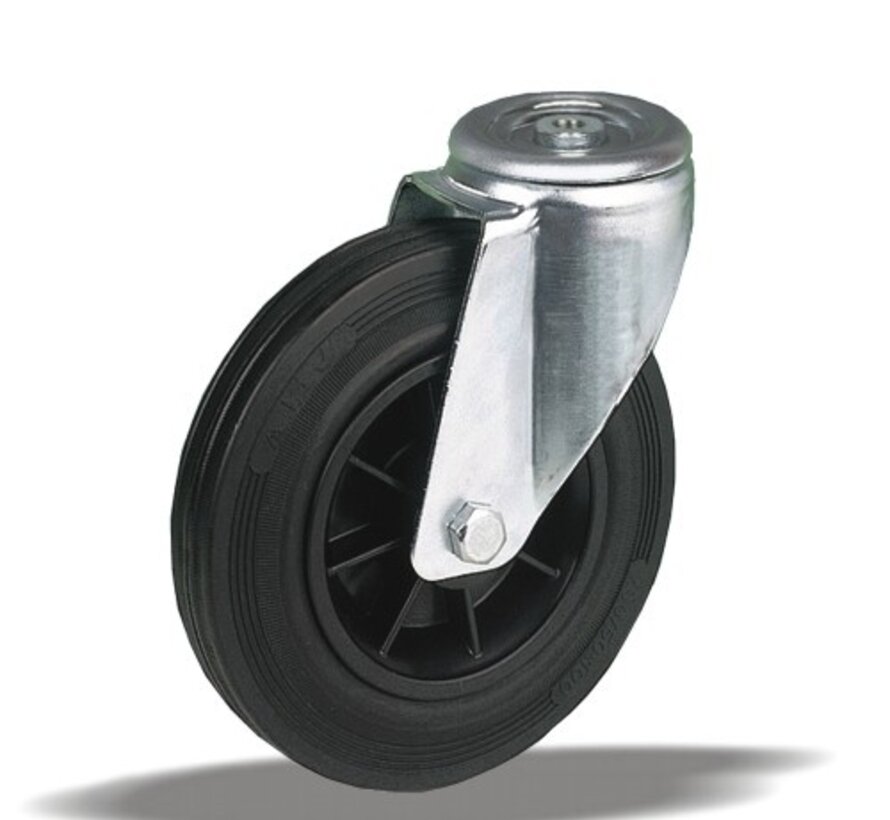

Swivel transport castor, 100 mm wheel diameter, black rubber tread, running on plain bearing. Rated load is 80 kg dynamic, 100 kg static, fixed with a 12.5 mm bolt hole.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description

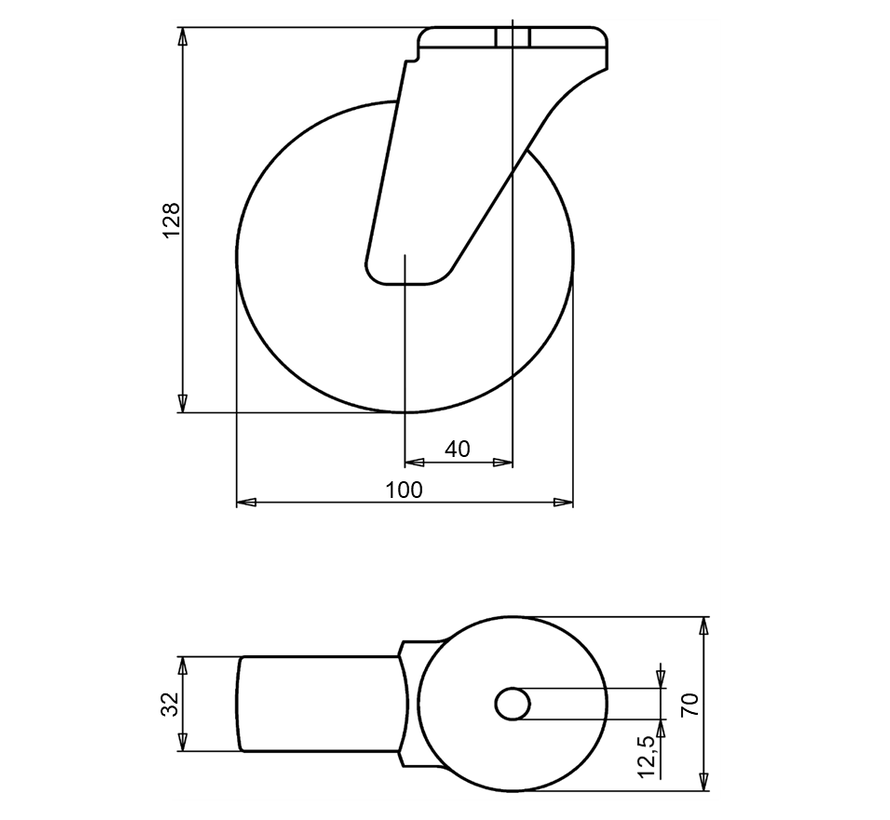

| Type | Swivel transport castor |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 32 mm |
| Tread | black rubber tread, 80 Shore A |
| Tread colour | black |
| Wheel centre | polypropylene |
| Bearing | plain bearing |
| Load capacity, dynamic | 80 kg |
| Load capacity, static | 100 kg |
| Fitting | single bolt hole |
| Hole diameter | 12.5 mm |
| Overall height | 128 mm |
| Offset | 40 mm |
| Weight | 0.9 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
| Top plate size | 70 mm |
Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC). Tested to EN 12532.
Properties and use
Suited to wet floors and low obstacles. The rubber tyre damps vibration and noise. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Product code | 34135 |
|---|---|
| Drawing number | 2-973 L12 |
| EAN | 3838461341359 |
Made by LIV
About LIV as a manufacturer of castors and wheels (opens in a new tab)
Need a version to your drawing? Project inquiry (opens in a new tab)
