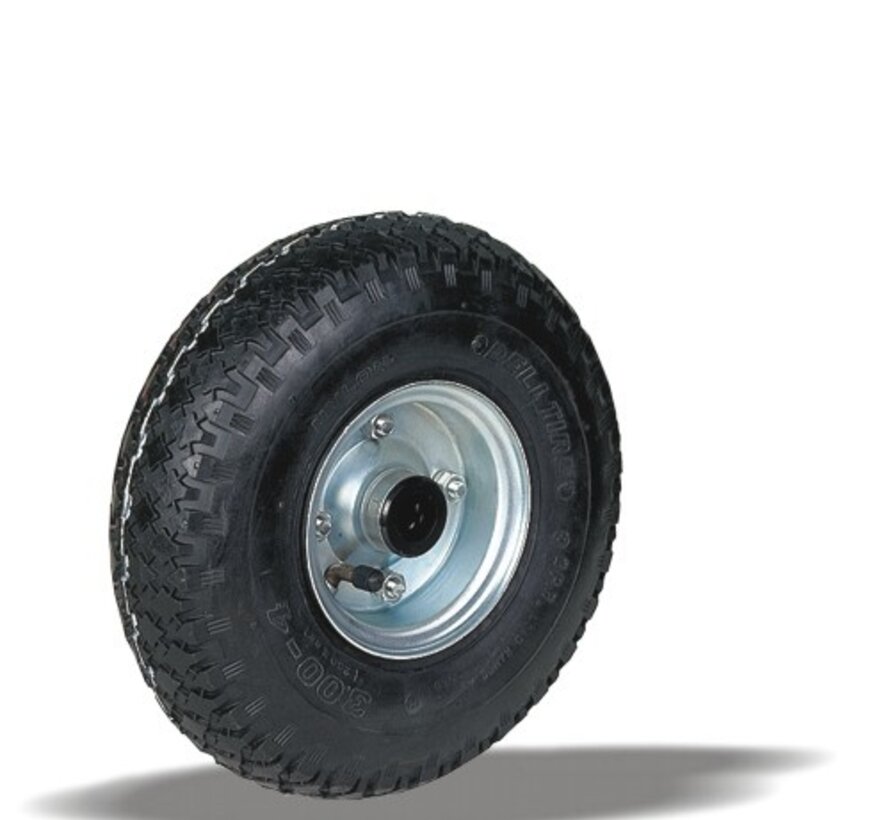

Wheel 220 mm, pneumatic tyre, roller bearing, axle hole 20 mm, 200 kg, product code 31864
Wheel, 220 mm wheel diameter, black pneumatic tyre, running on roller bearing. Rated load is 200 kg dynamic, 250 kg static, with a 20 mm axle hole.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Wheel |
|---|---|
| Wheel diameter | 220 mm |
| Wheel width | 65 mm |
| Tread | black pneumatic tyre |
| Wheel centre | steel, zinc electroplated, Cr(VI)-free |
| Bearing | roller bearing |
| Load capacity, dynamic | 200 kg |
| Load capacity, static | 250 kg |
| Axle hole | 20 mm |
| Weight | 1.4 kg |
| Temperature, continuous | -5 to +60 °C |
| Temperature, short exposure (max. 10 min) | -5 to +60 °C |
| Fitting | Wheel hub |
| Hub length | 75 mm |
Tread free of PAH (EU directive 2005/69/EC).
Properties and use
Absorbs shocks and passes obstacles softly. Suited to rocky ground. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Product code | 31864 |
|---|---|
| Drawing number | 2-302 |
| EAN | 3838461318641 |
