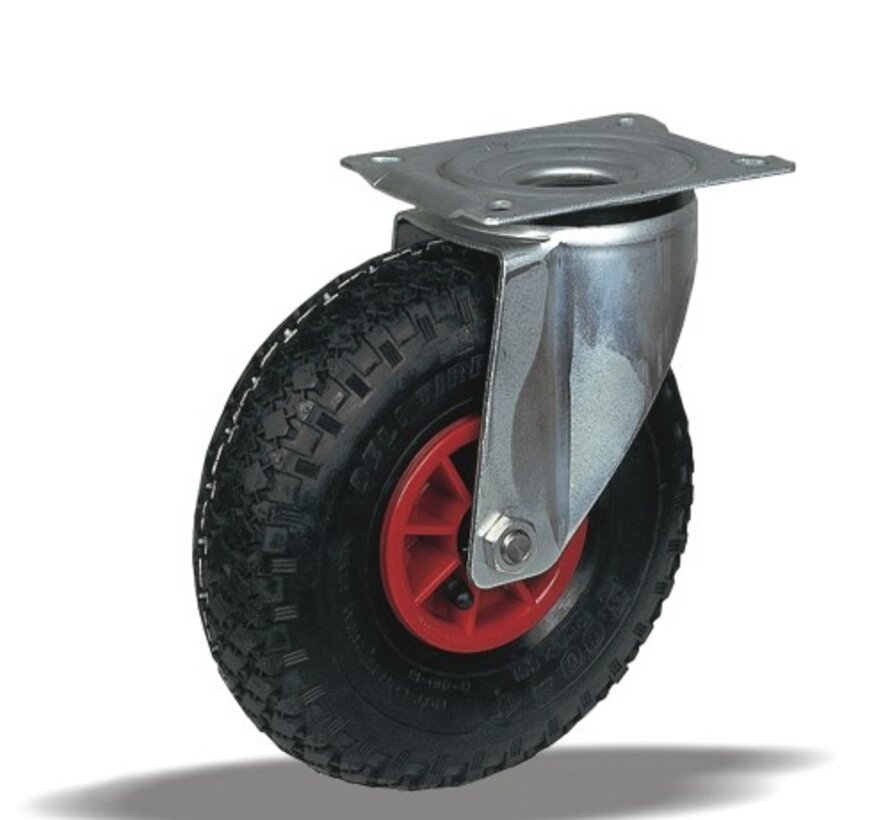

Swivel castor 220 mm, pneumatic tyre, roller bearing, plate 175x140 mm, 150 kg, product code 31845
Swivel castor with a 220 mm wheel, black pneumatic tyre, on roller bearing. It carries 150 kg dynamic and 180 kg static, mounted on a 175x140 mm top plate with hole distance 140x105 mm.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Swivel castor |
|---|---|
| Wheel diameter | 220 mm |
| Wheel width | 65 mm |
| Tread | black pneumatic tyre |
| Wheel centre | polypropylene |
| Bearing | roller bearing |
| Load capacity, dynamic | 150 kg |
| Load capacity, static | 180 kg |
| Top plate | 175x140 mm |
| Hole distance | 140x105 mm |
| Fixing hole diameter | 11 mm |
| Overall height | 255 mm |
| Offset | 65 mm |
| Weight | 3.3 kg |
| Temperature, continuous | -5 to +60 °C |
| Temperature, short exposure (max. 10 min) | -5 to +60 °C |
Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC).
Properties and use
Rolls over large stones and absorbs shocks. Easy to handle. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Product code | 31845 |
|---|---|

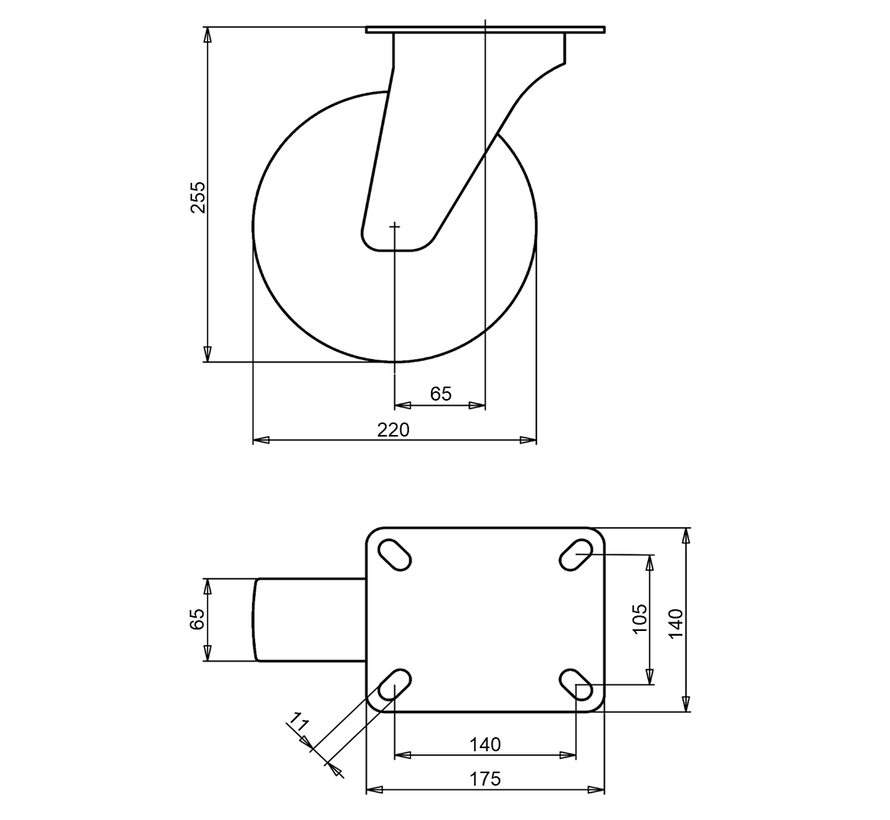

| Drawing number | 2-262 ISO |
| EAN | 3838461318450 |
Made by LIV
About LIV as a manufacturer of castors and wheels (opens in a new tab)
Need a version to your drawing? Project inquiry (opens in a new tab)
