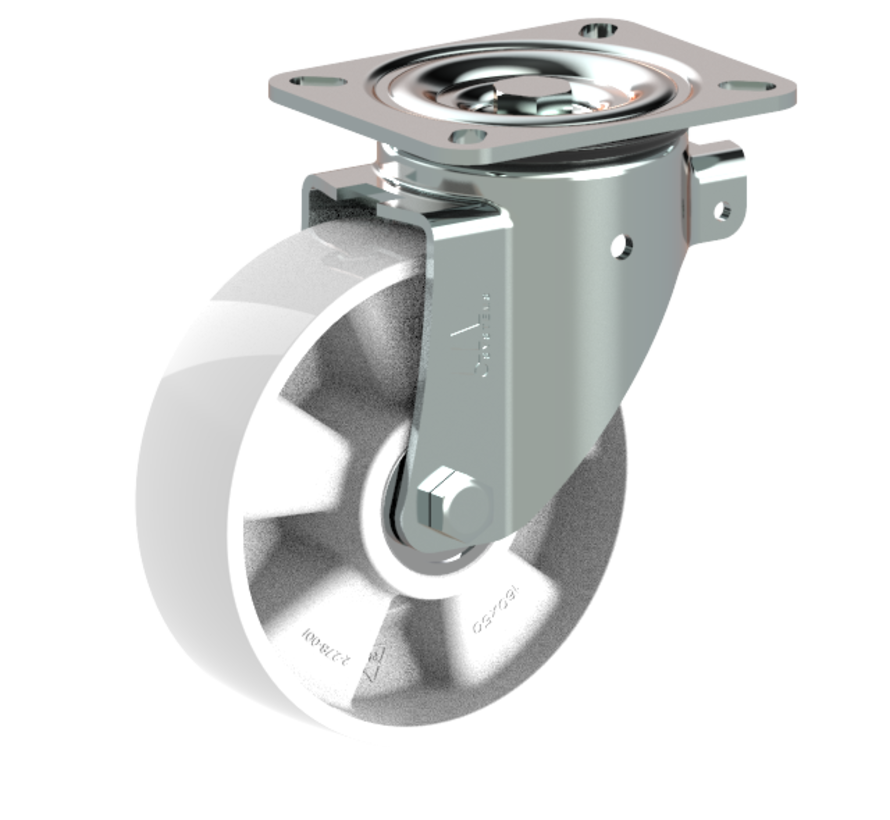

Heavy duty swivel castor 160 mm, polyamide, ball bearing, plate 140x110 mm, 400 kg, Art. 2-394 ISO, wheel centre white
Heavy duty swivel castor, 160 mm wheel diameter, solid polyamide wheel, running on ball bearing. Rated load is 400 kg dynamic, 500 kg static, mounted on a 140x110 mm top plate with hole distance 105x80 mm.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description

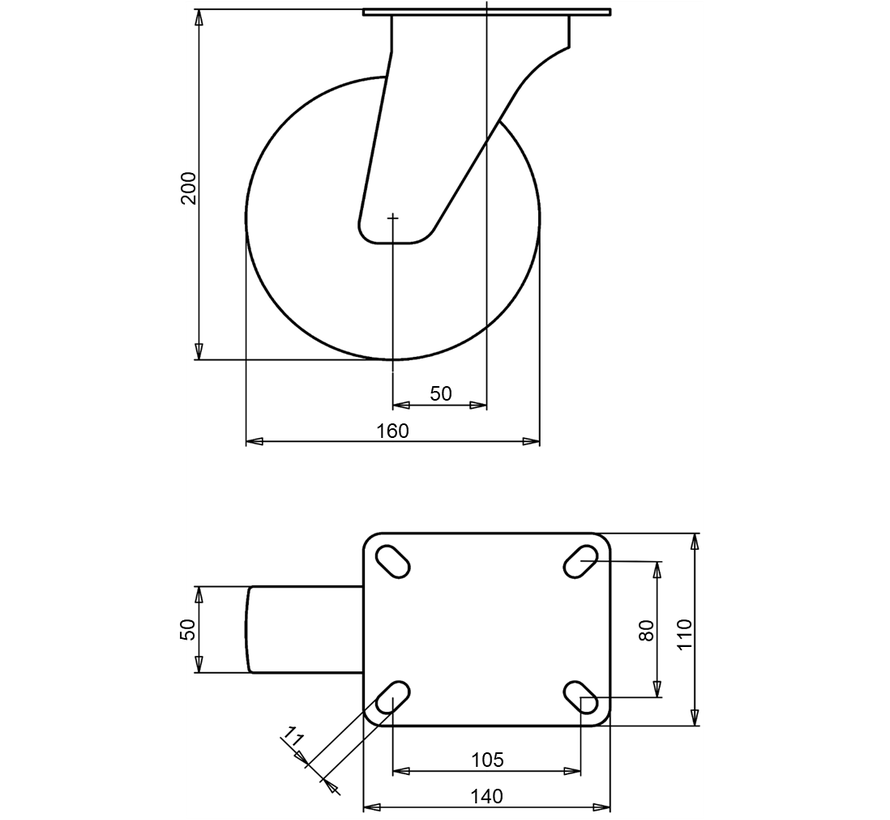

| Type | Heavy duty swivel castor |
|---|---|
| Wheel diameter | 160 mm |
| Wheel width | 50 mm |
| Tread | solid polyamide wheel, 70±5 Shore D |
| Wheel centre | polyamide |
| Bearing | ball bearing |
| Load capacity, dynamic | 400 kg |
| Load capacity, static | 500 kg |
| Top plate | 140x110 mm |
| Hole distance | 105x80 mm |
| Fixing hole diameter | 11 mm |
| Overall height | 200 mm |
| Offset | 50 mm |
| Directional lock | optional Available versions (2)
|
| Weight | 2.6 kg |
| Temperature, continuous | -25 to +80 °C |
| Temperature, short exposure (max. 10 min) | -30 to +110 °C |
| Tread hardness | 70 Shore D |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Low wear, little effort to keep rolling and easy to turn. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-394 ISO |
|---|---|
| SKU | 31774 |
| EAN | 3838461317743 |
