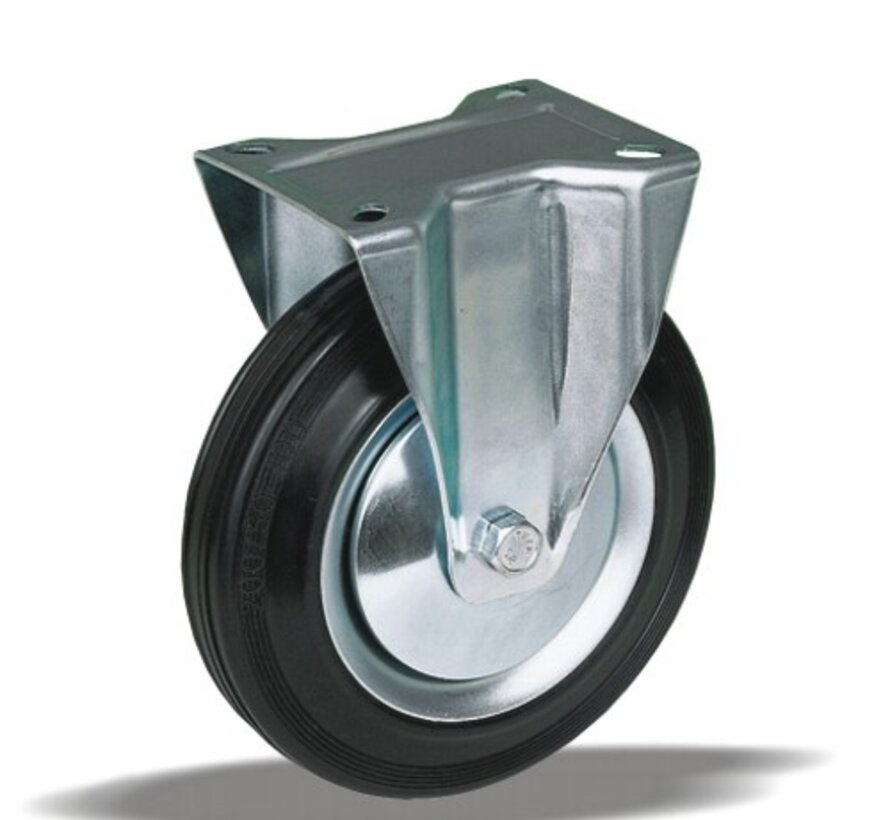

Fixed transport castor 100 mm, black rubber, plain bearing, plate 105x85 mm, 80 kg, Art. 2-125 A
Fixed transport castor, 100 mm wheel diameter, black rubber tread, running on plain bearing. Rated load is 80 kg dynamic, 100 kg static, mounted on a 105x85 mm top plate with hole distance 80x60 mm.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Fixed transport castor |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 32 mm |
| Tread | black rubber tread, 80 Shore A |
| Tread colour | black |
| Wheel centre | steel, zinc electroplated, Cr(VI)-free |
| Bearing | plain bearing |
| Load capacity, dynamic | 80 kg |
| Load capacity, static | 100 kg |

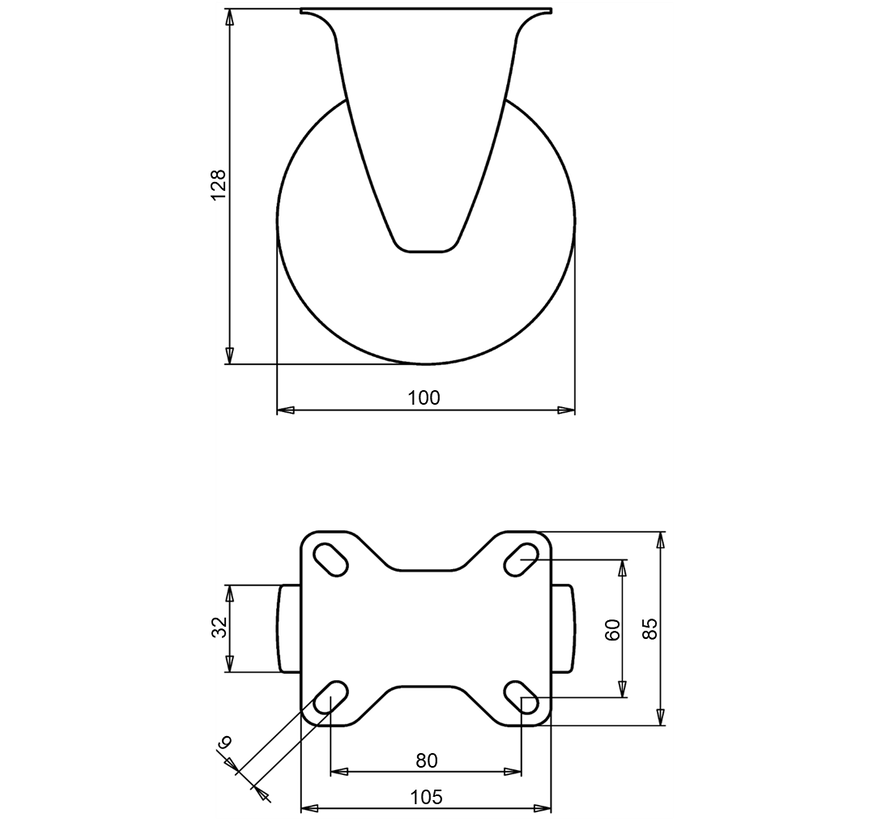

| Top plate | 105x85 mm |
| Hole distance | 80x60 mm |
| Fixing hole diameter | 9 mm |
| Overall height | 128 mm |
| Weight | 0.75 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC). Tested to EN 12532.
Properties and use
Steers easily and copes with uneven floors and obstacles. Steel rim and rubber tyre make a strong wheel. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-125 A |
|---|---|
| SKU | 31633 |
| EAN | 3838461316333 |
