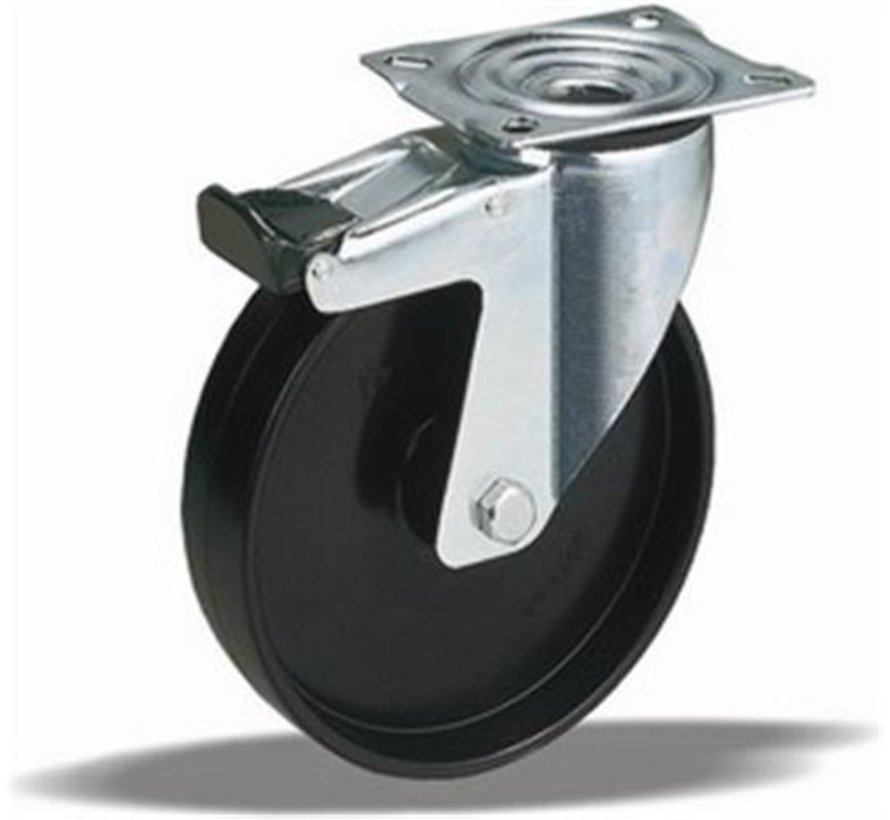

standard Swivel castor with brake with an overall height of 180 mm
Wheel diameter x width: 150 x 46 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with roller bearing and solid polypropylene wheel with hardness 60±5 Shore D
the double brake system, brakes the turning of the wheel and the swivel rotation.
Approved and tested load capacity
Dynamic 250 kg
Static 310 kg
Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: /°C
Advantages of this Long floor drive Swivel castor with brake:
✓ acidic environment
✓ wear off
✓ rolling resistance
standard Swivel castor with brake + solid polypropylene wheel Ø150 x W46mm for 250kg Prod ID: 30564
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-724 A
- SKU 30564
- EAN 3838461305641
