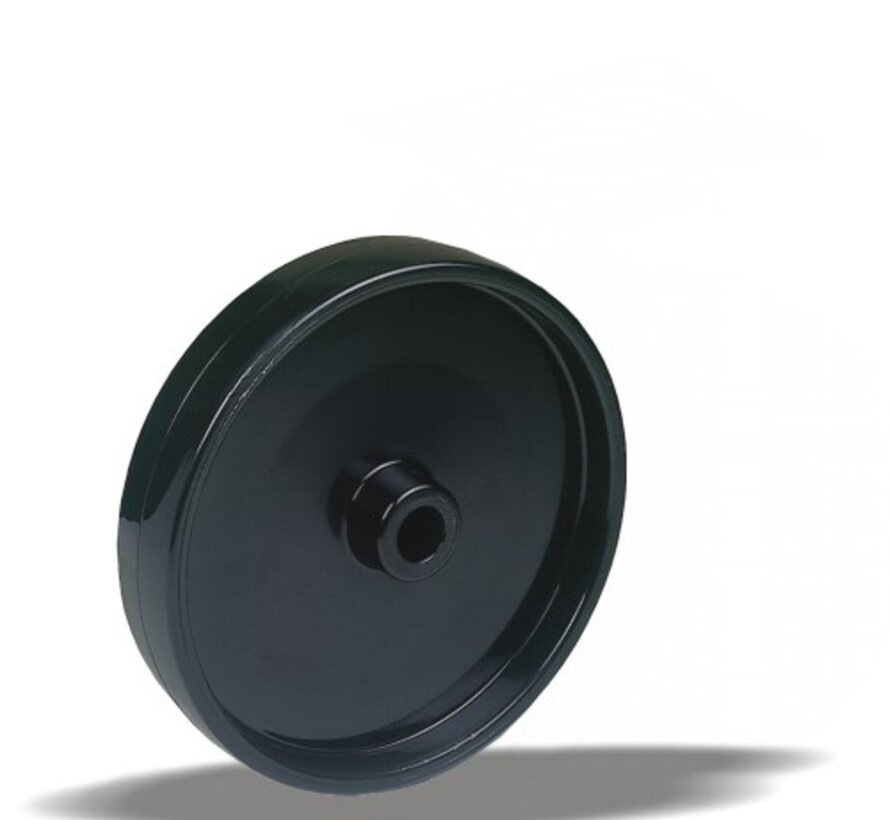

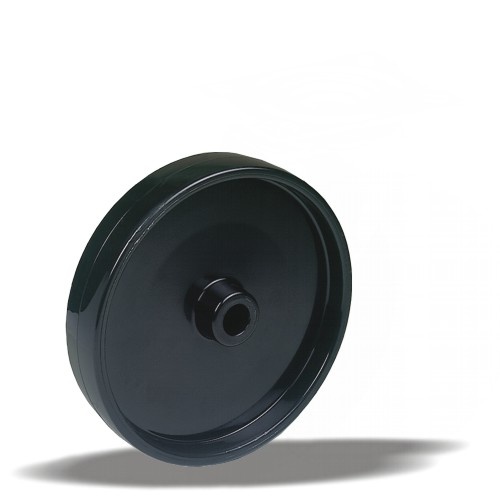

Wheel 200 mm, polyamide, plain bearing, axle hole 20 mm, 450 kg, Art. 2-764 A, wheel centre black

Wheel with a 200 mm wheel, solid polyamide wheel, on plain bearing. It carries 450 kg dynamic and 560 kg static, with a 20 mm axle hole.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeWheel
Wheel diameter200 mm
Wheel width40 mm
Treadsolid polyamide wheel, 70±5 Shore D
Wheel centrepolyamide
Bearingplain bearing
Load capacity, dynamic450 kg
Load capacity, static560 kg
Axle hole20 mm
Weight0.51 kg
Temperature, continuous-25 to +80 °C
Temperature, short exposure (max. 10 min)-30 to +110 °C
FittingWheel hub
Hub length50 mm
Tread hardness70 Shore D

Properties and use

Polyamide resists many chemicals, carries high loads and takes shock impact. It tolerates large temperature swings. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
