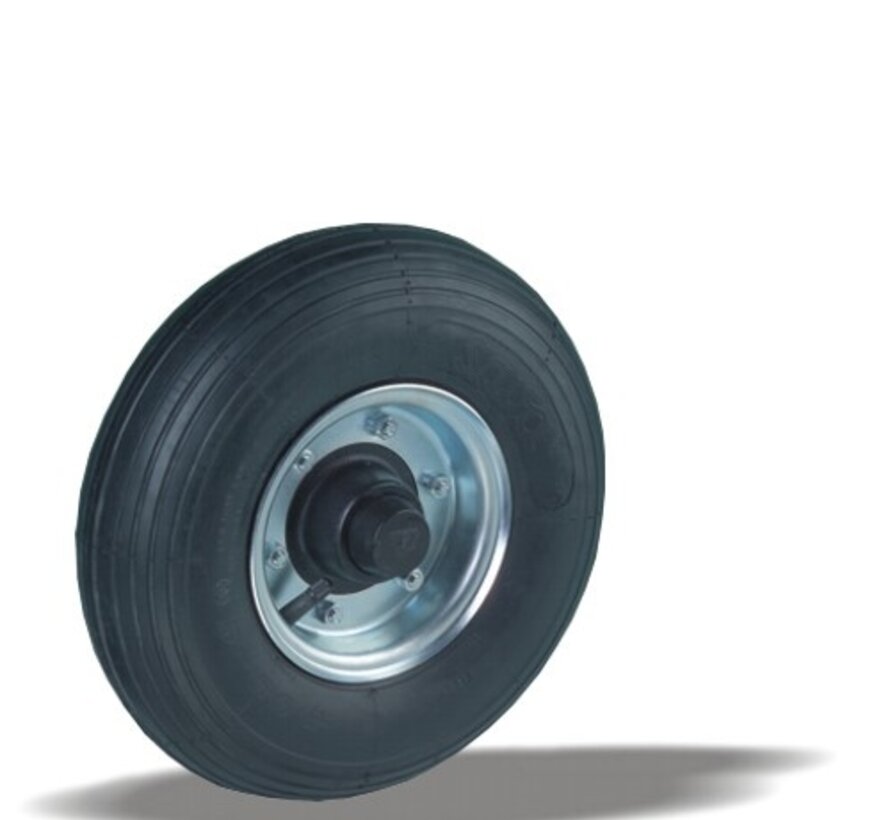

Wheel 350 mm, black rubber, ball bearing, axle hole 25 mm, 300 kg, Art. 2-213
Wheel with a 350 mm wheel, black rubber tread, on ball bearing. It carries 300 kg dynamic and 370 kg static, with a 25 mm axle hole.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Wheel |
|---|---|
| Wheel diameter | 350 mm |
| Wheel width | 100 mm |
| Tread | black rubber tread, 80 Shore A |
| Tread colour | black |
| Wheel centre | steel, zinc electroplated, Cr(VI)-free |
| Bearing | ball bearing |
| Load capacity, dynamic | 300 kg |
| Load capacity, static | 370 kg |
| Axle hole | 25 mm |
| Weight | 12.95 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
| Fitting | Wheel hub |
| Hub length | 56 mm |
Tread free of PAH (EU directive 2005/69/EC).
Properties and use
Rolls over obstacles and adapts to uneven ground. Easy to handle. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-213 |
|---|---|
| SKU | 22899 |
| EAN | 3838461228995 |
Made by LIV
About LIV as a manufacturer of castors and wheels (opens in a new tab)
Need a version to your drawing? Project inquiry (opens in a new tab)
