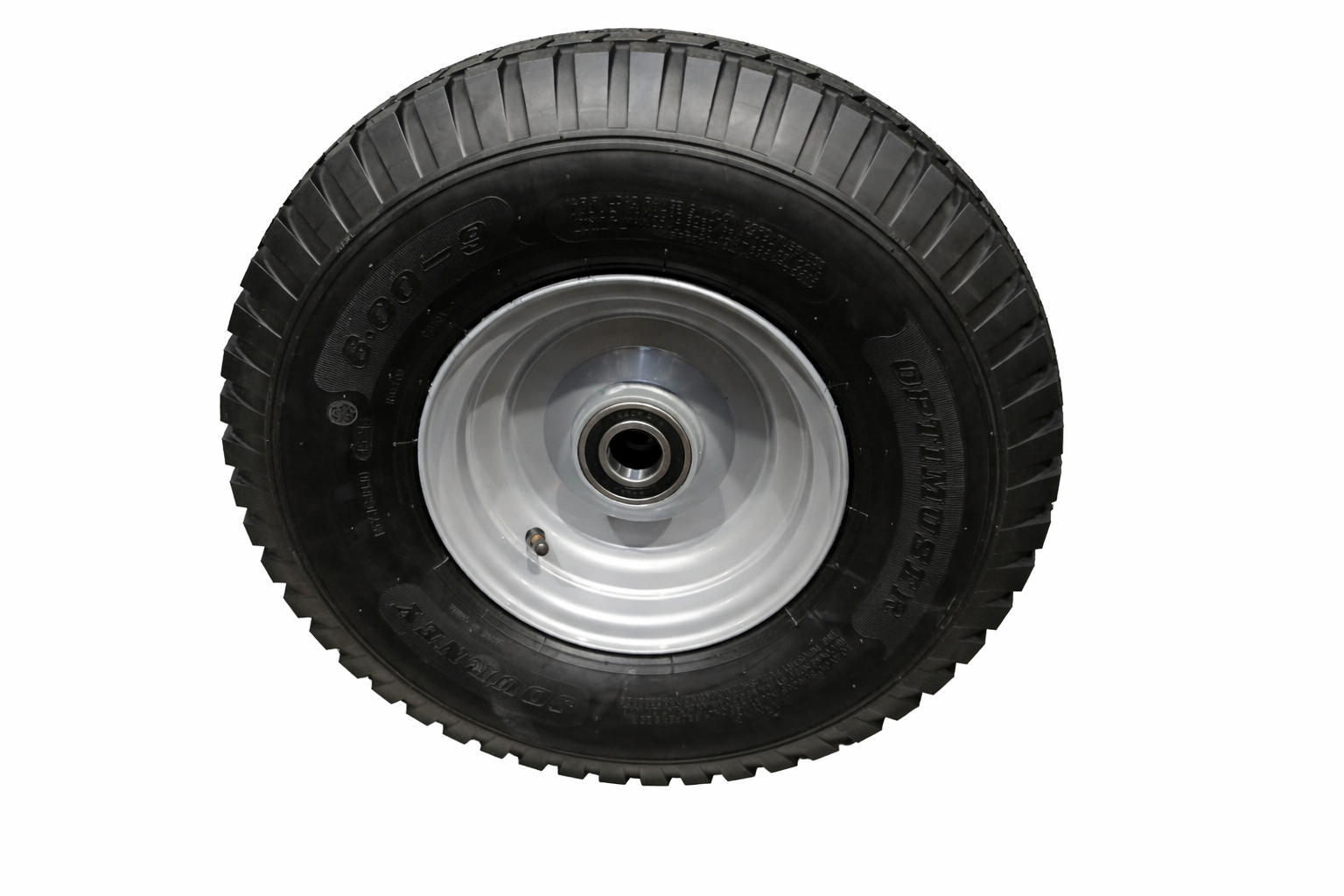

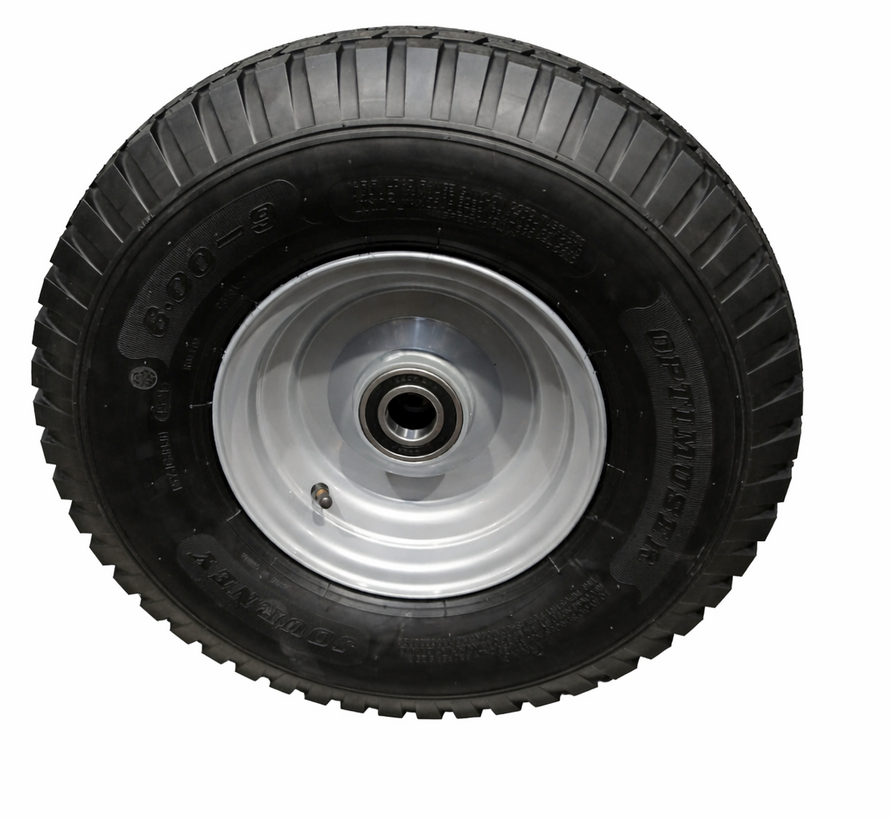

for rough floors wheel + pneumatic tyre Ø520 x W100mm for 2700kg Prod ID: 48838

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

for rough floors Heavy duty wheel dimensions 6.00-9, 14ply tubeless tyre. Rim 4.00Ex9.00, 80x6.0, 35x68-68 fixation dimensions, powder coated.
Wheel diameter x width: 520 x 100 mm
Axle hole: 35 mm
Hub length: 68-68 mm

Approved and tested load capacity
Dynamic 2700 kg-10km/h
Static 2700 kg-10km/h

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Off floor trip wheel:
✓ rolls over obstacles
✓ ground adapting
✓ to manipulate

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS for rough floors wheel + pneumatic tyre Ø520 x W100mm for 2700kg Prod ID: 48838

ID 48838:for rough floors. Heavy duty wheel dimensions 6.00-9, 14ply tubeless tyre. Rim 4.00Ex9.00, 80x6.0, 35x68-68 fixation dimensions, powder coated. Wheel dimensions D520x100mm. | Axle hole: 35 mm | Hub length: 68-68 mm | Off floor trip, easily rolls
