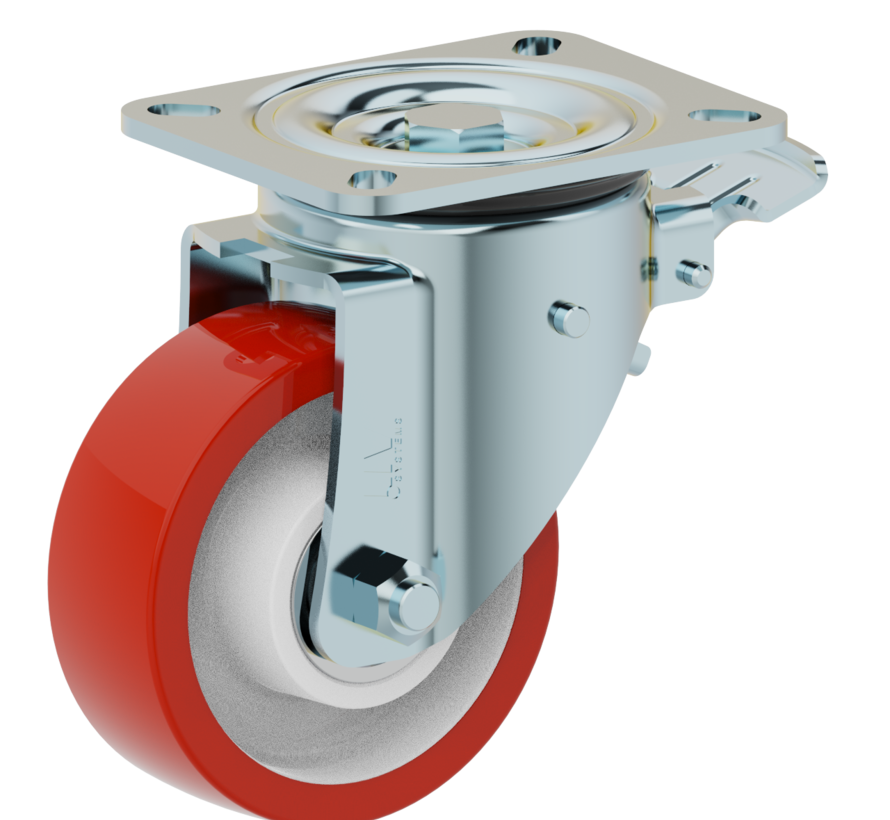

| Type | Heavy duty swivel castor with total brake |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 60 mm |
| Tread | polyurethane tread, 92 Shore A |
| Tread colour | orange/red/brown |
| Wheel centre | aluminium |
| Bearing | ball bearing |
| Load capacity, dynamic | 300 kg |
| Load capacity, static | 570 kg |
| Top plate | 135x110 mm |
| Hole distance | 110x80 mm |
| Fixing hole diameter | 9 mm |
| Overall height | 170 mm |
| Brake | total brake (locks wheel and swivel) |
| Temperature, continuous | -25 to +55 °C |
| Temperature, short exposure (max. 10 min) | -40 to +55 °C |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Low own weight and chemical resistance. Heavy loads move with little effort. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
