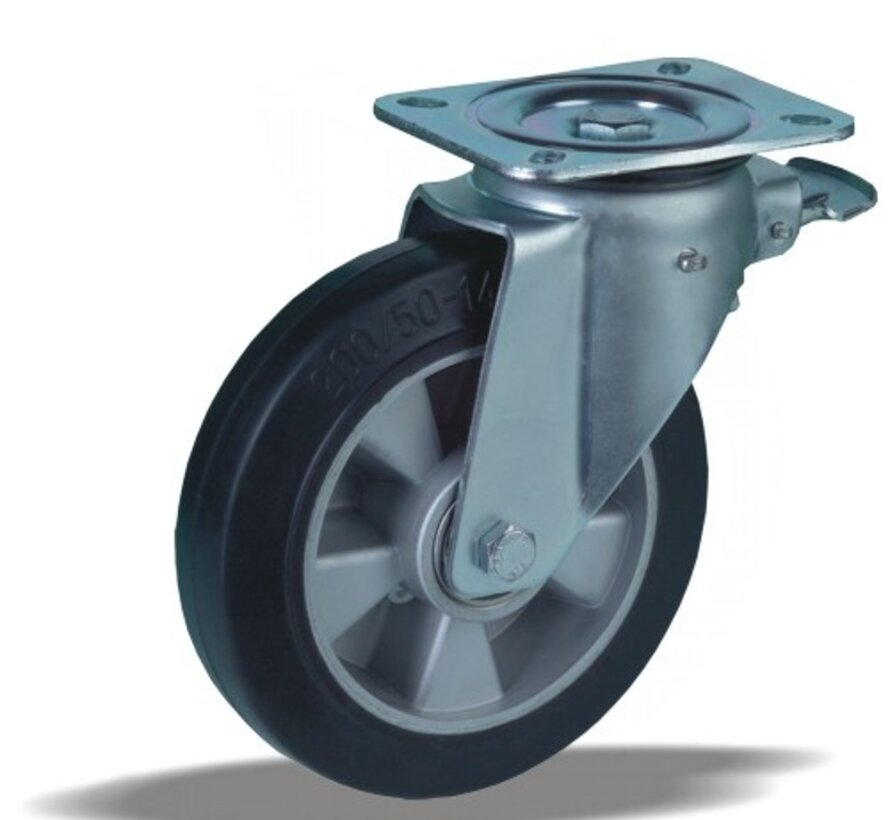

heavy duty Swivel castor with brake + black rubber tyre Ø250 x W50mm for 550kg Prod ID: 43840

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

heavy duty Swivel castor with brake with an overall height of 289 mm
Wheel diameter x width: 250 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with ball bearing and black rubber tyre with hardness 65 ° Shore A on aluminium
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 550 kg
Static 670 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Firm and soft way Swivel castor with brake:
✓ moving of goods
✓ for uneven floor
✓ weight capacity

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS heavy duty Swivel castor with brake + black rubber tyre Ø250 x W50mm for 550kg Prod ID: 43840

ID 43840: Castor overall height 289 mm | 4 mounting holes with distance 105x80 mm | Wheel with ball bearing and black rubber tyre with hardness 65 ° Shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Firm and so
