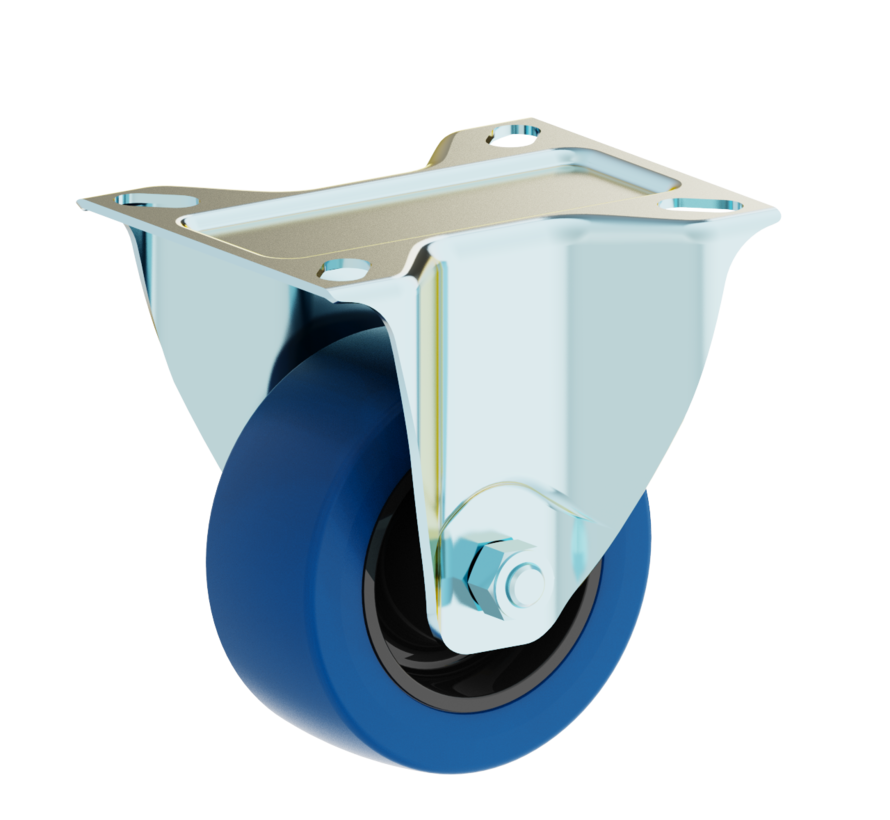

standard Fixed castor with an overall height of 106 mm
Wheel diameter x width: 80 x 35 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with roller bearing and elastic rubber tyre with hardness 70 ° Shore A on polyamide.
Approved and tested load capacity
Dynamic 130 kg
Static 160 kg
Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C
Advantages of this silent floor motion Fixed castor:
✓ rolling resistance
✓ to surface
✓ barrier passing
standard Fixed castor + elastic rubber tyre Ø80 x W35mm for 130kg Prod ID: 48173
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-071-20V
- SKU 48173
- EAN 3838461481734
Specifications
