| SKZ certificate | 56208 (DIN EN 840-5:2020-06, RAL-GZ 951/1:2023-08) |
|---|---|

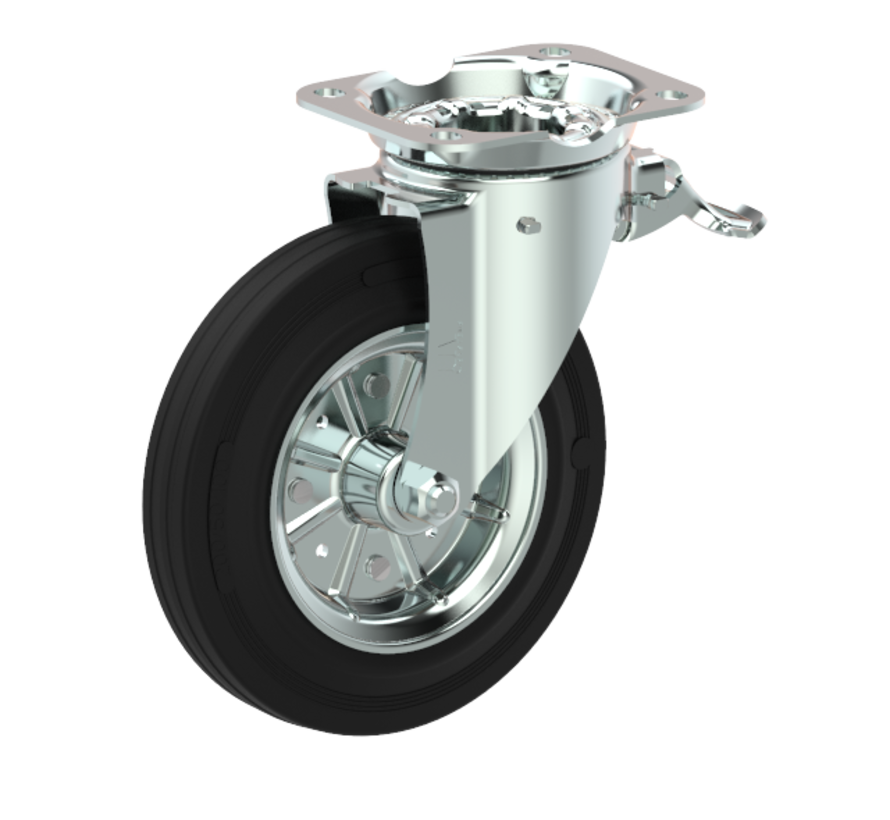

| Type | Waste container swivel castor with total brake |

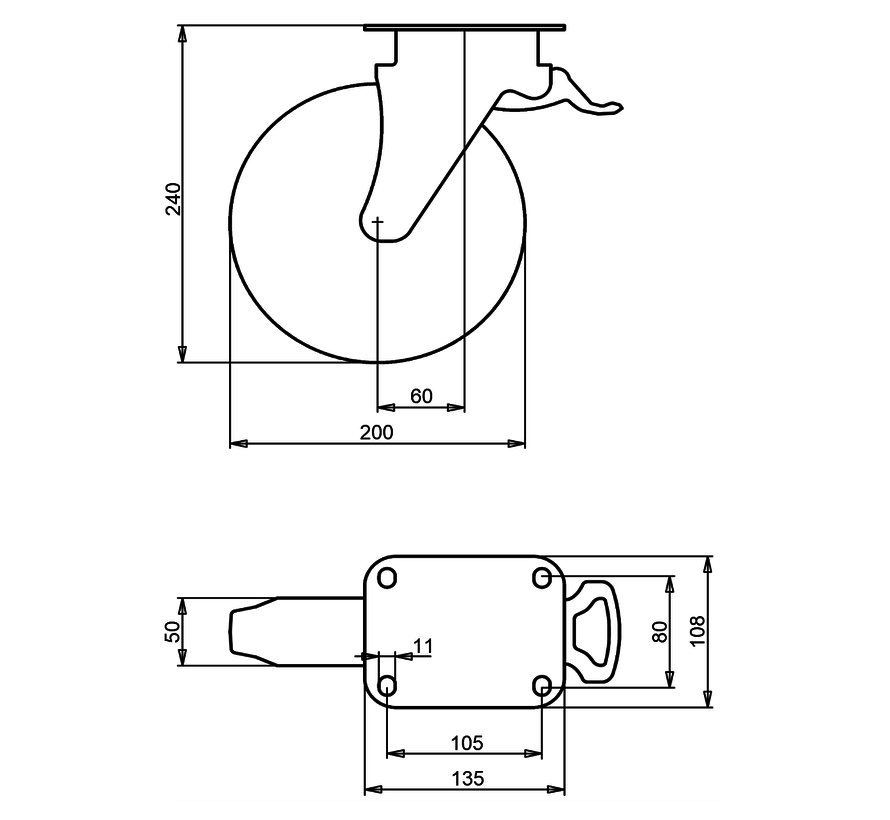

| Wheel diameter | 200 mm |
| Wheel width | 50 mm |
| Tread | black rubber tread, 80 Shore A |
| Tread colour | black |
| Wheel centre | steel, zinc electroplated, Cr(VI)-free |
| Bearing | plain bearing |
| Load capacity, dynamic | 250 kg |
| Load capacity, static | 310 kg |
| Top plate | 135x108 mm |
| Hole distance | 105x80 mm |
| Fixing hole diameter | 11 mm |
| Overall height | 240 mm |
| Offset | 60 mm |
| Brake | total brake (locks wheel and swivel) |
| Directional lock | optional |
| Weight | 2.83 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
For changing weather and rough handling, with a long service life. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
